2.0mm Straight Locking Plate in titanium with compression and locking holes. Six listed configurations span 4 to 10 holes and 31 to 73 mm, with support for 2.0mm cortical and locking screws.

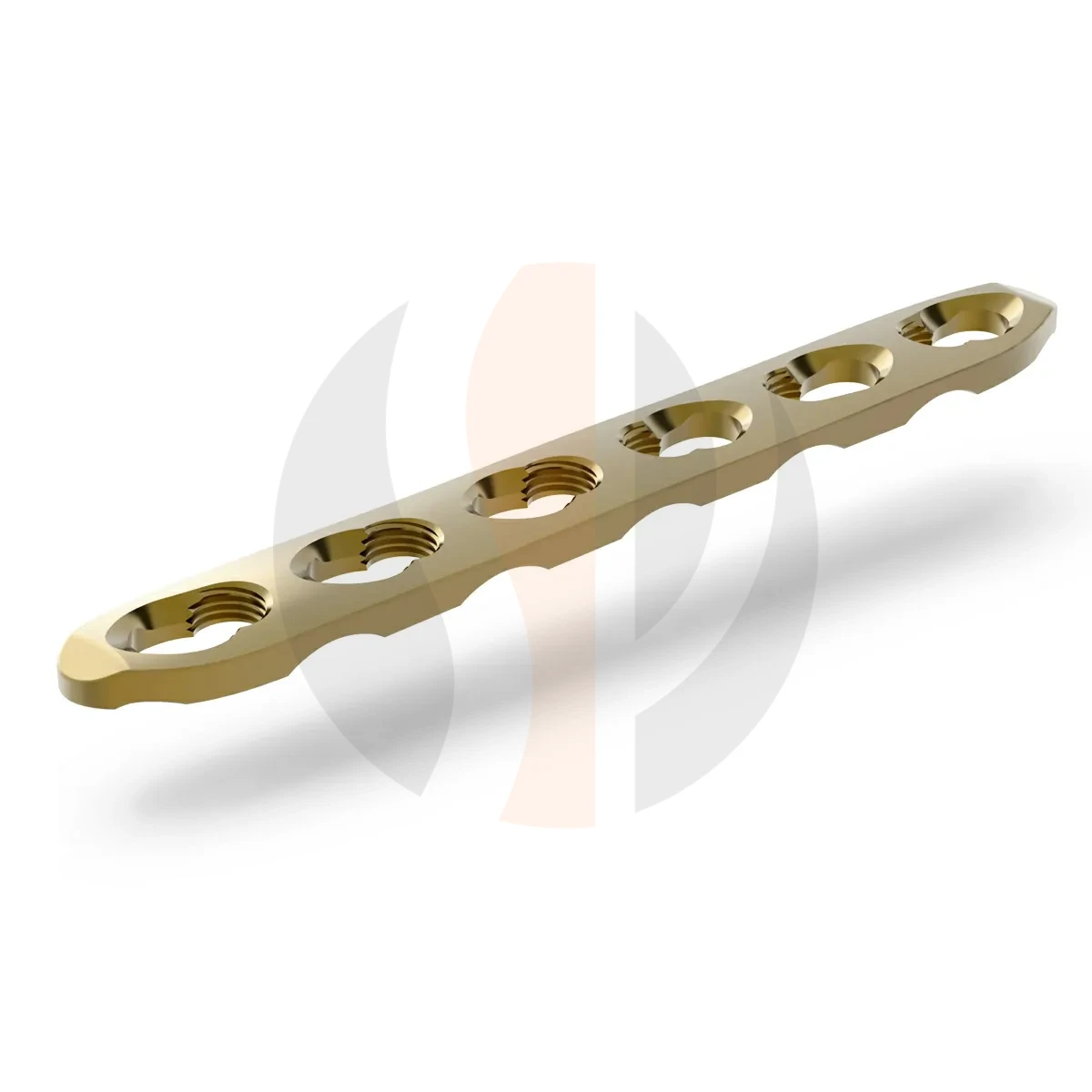

2.0mm Straight Locking Plate is a titanium plate with six listed shaft-hole configurations: 4, 5, 6, 7, 8 and 10 holes. The corresponding lengths are 31, 38, 45, 52, 59 and 73 mm.
This straight plate features compression and locking holes. Every plate hole is described as supporting 2.0mm cortical and locking screws. The available sizes are individually coded, so selecting by length and reference provides a clearer specification than requesting a straight hand plate without its configuration.
The catalogue describes non-comminuted, wedge-comminuted and comminuted diaphyseal fracture applications involving phalanges, metacarpals, wrist bones and the distal radius. The anatomical wording is broad; confirm the precise intended use for the selected device in its current instructions.
| Holes | Length (mm) | Titanium |
|---|---|---|
| 4 | 31 | 4-308-04Ti |
| 5 | 38 | 4-308-05Ti |
| 6 | 45 | 4-308-06Ti |
| 7 | 52 | 4-308-07Ti |
| 8 | 59 | 4-308-08Ti |
| 10 | 73 | 4-308-10Ti |
Quote the complete 4-308 reference from the size table and the quantity needed. A 9-hole option is not listed. Do not confuse this model with either of the two 12-hole Adaption Straight products.
The listed options are 4 holes/31 mm, 5/38 mm, 6/45 mm, 7/52 mm, 8/59 mm and 10/73 mm. No 9-hole configuration is listed.
Yes. The catalogue explicitly describes compression and locking holes in this titanium straight plate.
All holes are described as supporting 2.0mm cortical and locking screws. Confirm the exact component and instrument requirements for the intended system.
This model has six configurations from 31 to 73 mm. The separate Adaption Straight Locking Plate has 12 holes at 81.26 mm, while the Adaption Straight Plate has 12 holes at 71 mm.
Use the complete 4-308 series code, hole count, length and quantity. For example, 4-308-04Ti identifies the 4-hole, 31 mm plate, and 4-308-10Ti identifies the 10-hole, 73 mm plate.
