Specifications
• Cannulated shaft accepts guide wires of 1.2mm
• Hemispherical head of the screws ensures optimal annular contact with washers and
plates when screws are angled
• Low-profile head reduces possibility of soft tissue irritation
• Standard 2.5mm hexagonal drive is compatible
• Reverse cutting flutes assist in screw
Choice of thread lengths offers best fit of threads into far bone fragment, for greater
interfragmentary compression

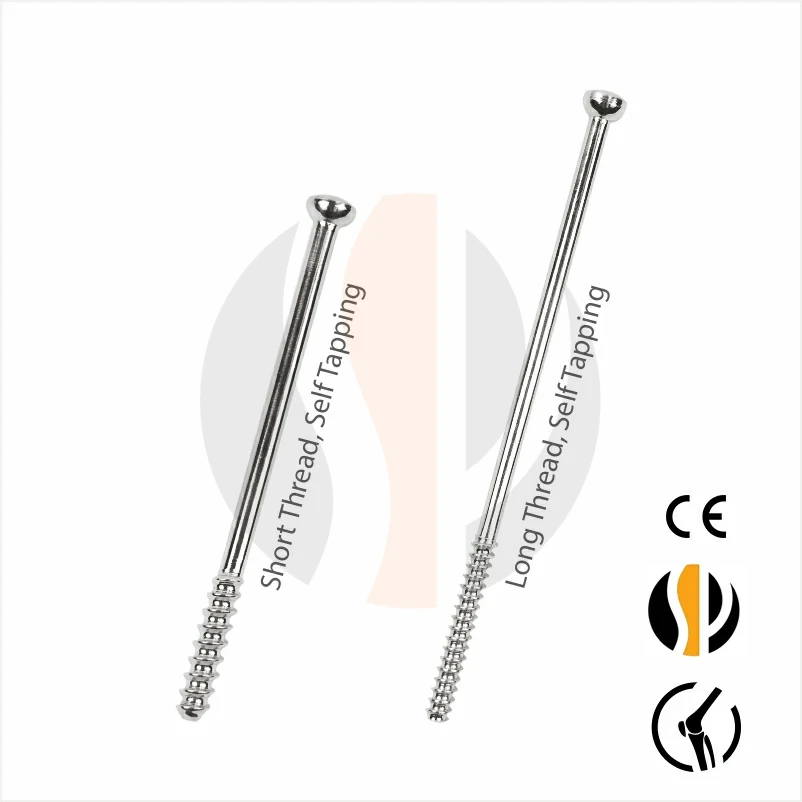

• Thread Length-
Short thread
(thread length = 1/3 screw length)
Long thread
(thread length = 1/2 screw length)
• Cancellous thread profile uses deep ‘cutting threads’ with a large pitch to increase
resistance to pullout. The large pitch also accelerates screw insertion and removal.
• Fully threaded screws are intended to stabilize fractures where little to no
compression across the fracture site is needed.
• Length ranges from 10mm-60mm with a diameter of 4.0mm.
• Available in both Titanium and Stainless Steel
Indications for use
Fixation of fractures with medium fragments, eg.-
• Tarsals and metatarsals fractures, fixation in metatarsals and phalangeal osteotomies
• Tarsometatarsal and metatarsophalangeal arthrodeses
• Ligament fixations
• Hallux valgus corrections
Specifications
• Cannulated shaft accepts guide wires of 1.2mm
• Hemispherical head of the screws ensures optimal annular contact with washers and
plates when screws are angled
• Low-profile head reduces possibility of soft tissue irritation
• Standard 2.5mm hexagonal drive is compatible
• Reverse cutting flutes assist in screw
Choice of thread lengths offers best fit of threads into far bone fragment, for greater
interfragmentary compression
• Thread Length-
Short thread
(thread length = 1/3 screw length)
Long thread
(thread length = 1/2 screw length)
• Cancellous thread profile uses deep ‘cutting threads’ with a large pitch to increase
resistance to pullout. The large pitch also accelerates screw insertion and removal.
• Fully threaded screws are intended to stabilize fractures where little to no
compression across the fracture site is needed.
• Length ranges from 10mm-60mm with a diameter of 4.0mm.
• Available in both Titanium and Stainless Steel
Indications for use
Fixation of fractures with medium fragments, eg.-
• Tarsals and metatarsals fractures, fixation in metatarsals and phalangeal osteotomies
• Tarsometatarsal and metatarsophalangeal arthrodeses
• Ligament fixations
• Hallux valgus corrections
| Length (mm) | Stainless Steel | Titanium |
|---|---|---|
| 10 | 7-160-10 | 7-160-10Ti |
| 12 | 7-160-12 | 7-160-12Ti |
| 14 | 7-160-14 | 7-160-14Ti |
| 16 | 7-160-16 | 7-160-16Ti |
| 18 | 7-160-18 | 7-160-18Ti |
| 20 | 7-160-20 | 7-160-20Ti |
| 22 | 7-160-22 | 7-160-22Ti |
| 24 | 7-160-24 | 7-160-24Ti |
| 26 | 7-160-26 | 7-160-26Ti |
| 28 | 7-160-28 | 7-160-28Ti |
| 30 | 7-160-30 | 7-160-30Ti |
| 32 | 7-160-32 | 7-160-32Ti |
| 34 | 7-160-34 | 7-160-34Ti |
| 36 | 7-160-36 | 7-160-36Ti |
| 38 | 7-160-38 | 7-160-38Ti |
| 40 | 7-160-40 | 7-160-40Ti |
| 42 | 7-160-42 | 7-160-42Ti |
| 44 | 7-160-44 | 7-160-44Ti |
| 46 | 7-160-46 | 7-160-46Ti |
| 48 | 7-160-48 | 7-160-48Ti |
| 50 | 7-160-50 | 7-160-50Ti |
| 55 | 7-160-55 | 7-160-55Ti |
| 60 | 7-160-60 | 7-160-60Ti |
| 65 | 7-160-65 | 7-160-65Ti |
| 70 | 7-160-70 | 7-160-70Ti |
| Length (mm) | Stainless Steel | Titanium |
|---|---|---|
| 10 | 7-170-10 | 7-170-10Ti |
| 12 | 7-170-12 | 7-170-12Ti |
| 14 | 7-170-14 | 7-170-14Ti |
| 16 | 7-170-16 | 7-170-16Ti |
| 18 | 7-170-18 | 7-170-18Ti |
| 20 | 7-170-20 | 7-170-20Ti |
| 22 | 7-170-22 | 7-170-22Ti |
| 24 | 7-170-24 | 7-170-24Ti |
| 26 | 7-170-26 | 7-170-26Ti |
| 28 | 7-170-28 | 7-170-28Ti |
| 30 | 7-170-30 | 7-170-30Ti |
| 32 | 7-170-32 | 7-170-32Ti |
| 34 | 7-170-34 | 7-170-34Ti |
| 36 | 7-170-36 | 7-170-36Ti |
| 38 | 7-170-38 | 7-170-38Ti |
| 40 | 7-170-40 | 7-170-40Ti |
| 42 | 7-170-42 | 7-170-42Ti |
| 44 | 7-170-44 | 7-170-44Ti |
| 46 | 7-170-46 | 7-170-46Ti |
| 48 | 7-170-48 | 7-170-48Ti |
| 50 | 7-170-50 | 7-170-50Ti |
| 55 | 7-170-55 | 7-170-55Ti |
| 60 | 7-170-60 | 7-170-60Ti |
| 65 | 7-170-65 | 7-170-65Ti |
| 70 | 7-170-70 | 7-170-70Ti |
