Specifications
• Cannulated shaft accepts guide wires of 1.1mm with threaded Trocar tip.
• Low-profile head with cruciform drive recess reduces possibility of soft tissue
irritation
• Threaded washer option allows complete burial of screw head into articular surfaces,
while still achieving a high degree of compression
• Choice of thread lengths offers best fit of threads into far bone fragment, for greater
interfragmentary compression
• Thread Length-
Long thread
(thread length = 1/2 screw length)
• Fully threaded screws are intended to stabilize fractures where little to no
compression across the fracture site is needed.
• Cancellous thread profile uses deep cutting threads with a large pitch to increase
resistance to pullout. The large pitch also accelerates screw insertion and removal
• Length ranges from 14mm-50mm with a diameter of 3.0mm.
• Available in both Titanium and Stainless Steel
Indications for use
Fixation of fractures of the forearm, hand and foot, eg.-
• Fractures of arthrodeses of carpals and metacarpals
• Fracture of the distal radius and radial head
• metatarsals fractures
Specifications
• Cannulated shaft accepts guide wires of 1.1mm with threaded Trocar tip.
• Low-profile head with cruciform drive recess reduces possibility of soft tissue
irritation
• Threaded washer option allows complete burial of screw head into articular surfaces,
while still achieving a high degree of compression
• Choice of thread lengths offers best fit of threads into far bone fragment, for greater
interfragmentary compression
• Thread Length-
Long thread
(thread length = 1/2 screw length)
• Fully threaded screws are intended to stabilize fractures where little to no
compression across the fracture site is needed.
• Cancellous thread profile uses deep cutting threads with a large pitch to increase
resistance to pullout. The large pitch also accelerates screw insertion and removal
• Length ranges from 14mm-50mm with a diameter of 3.0mm.
• Available in both Titanium and Stainless Steel
Indications for use
Fixation of fractures of the forearm, hand and foot, eg.-
• Fractures of arthrodeses of carpals and metacarpals
• Fracture of the distal radius and radial head
• metatarsals fractures

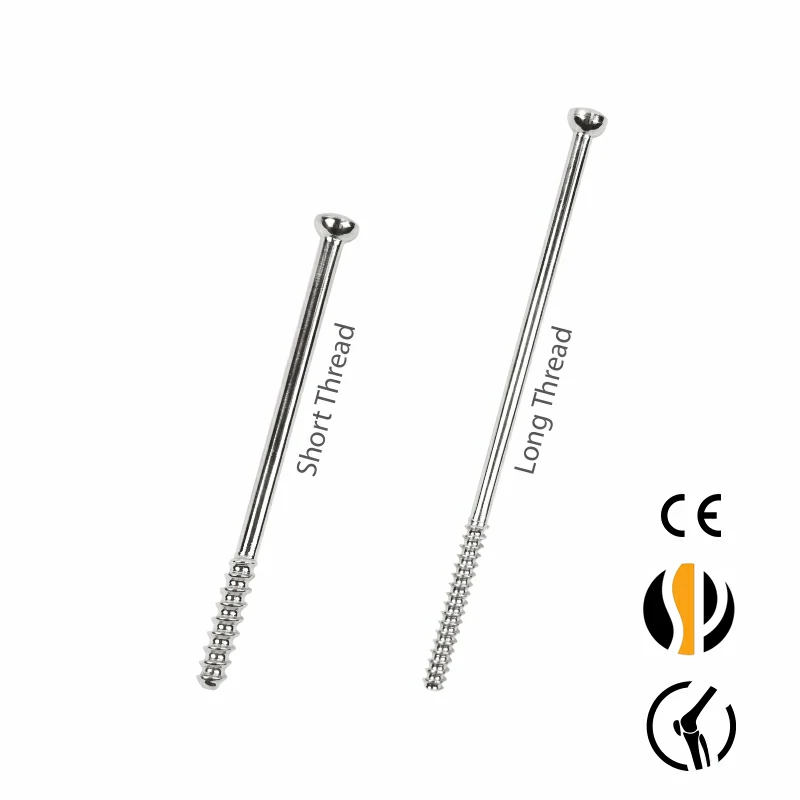

3.0mm Cannulated Cancellous Screw, Short Thread
| Length (mm) | Thread Length (mm) | Stainless Steel | Titanium |
|---|---|---|---|
| 10 | 4 | 7-100-10 | 7-100-10Ti |
| 12 | 4 | 7-100-12 | 7-100-12Ti |
| 14 | 4 | 7-100-14 | 7-100-14Ti |
| 16 | 4 | 7-100-16 | 7-100-16Ti |
| 18 | 5 | 7-100-18 | 7-100-18Ti |
| 20 | 5 | 7-100-20 | 7-100-20Ti |
| 22 | 5 | 7-100-22 | 7-100-22Ti |
| 24 | 6 | 7-100-24 | 7-100-24Ti |
| 26 | 6 | 7-100-26 | 7-100-26Ti |
| 28 | 6 | 7-100-28 | 7-100-28Ti |
| 30 | 6 | 7-100-30 | 7-100-30Ti |
| 32 | 6 | 7-100-32 | 7-100-32Ti |
| 34 | 7 | 7-100-34 | 7-100-34Ti |
| 36 | 7 | 7-100-36 | 7-100-36Ti |
| 38 | 8 | 7-100-38 | 7-100-38Ti |
| 40 | 8 | 7-100-40 | 7-100-40Ti |
| 42 | 8 | 7-100-42 | 7-100-42Ti |
| 44 | 9 | 7-100-44 | 7-100-44Ti |
| 46 | 9 | 7-100-46 | 7-100-46Ti |
| 48 | 10 | 7-100-48 | 7-100-48Ti |
| 50 | 10 | 7-100-50 | 7-100-50Ti |
3.0mm Cannulated Cancellous Screw, Long Thread
| Length (mm) | Thread Length (mm) | Stainless Steel | Titanium |
|---|---|---|---|
| 14 | 6 | 7-110-14 | 7-110-14Ti |
| 16 | 7 | 7-110-16 | 7-110-16Ti |
| 18 | 8 | 7-110-18 | 7-110-18Ti |
| 20 | 9 | 7-110-20 | 7-110-20Ti |
| 22 | 10 | 7-110-22 | 7-110-22Ti |
| 24 | 10 | 7-110-24 | 7-110-24Ti |
| 26 | 12 | 7-110-26 | 7-110-26Ti |
| 28 | 12 | 7-110-28 | 7-110-28Ti |
| 30 | 14 | 7-110-30 | 7-110-30Ti |
| 32 | 14 | 7-110-32 | 7-110-32Ti |
| 34 | 16 | 7-110-34 | 7-110-34Ti |
| 36 | 16 | 7-110-36 | 7-110-36Ti |
| 38 | 18 | 7-110-38 | 7-110-38Ti |
| 40 | 18 | 7-110-40 | 7-110-40Ti |
| 42 | 20 | 7-110-42 | 7-110-42Ti |
| 44 | 20 | 7-110-44 | 7-110-44Ti |
| 46 | 22 | 7-110-46 | 7-110-46Ti |
| 48 | 22 | 7-110-48 | 7-110-48Ti |
| 50 | 22 | 7-110-50 | 7-110-50Ti |
