The 130° PFN Nailing System includes titanium proximal femoral nails in short and long configurations, together with spiral blades, end caps, and 4.9 mm self-tapping locking screws.
The catalogue features a 5° proximal bend, short nail lengths of 170, 200, and 240 mm, and long nail lengths of 300–420 mm. Detailed ordering tables list shaft diameters of 9–12 mm, with separate left and right options for long nails.
Contact Stahlmann Pro for product references, compatible instrumentation, and quotations.

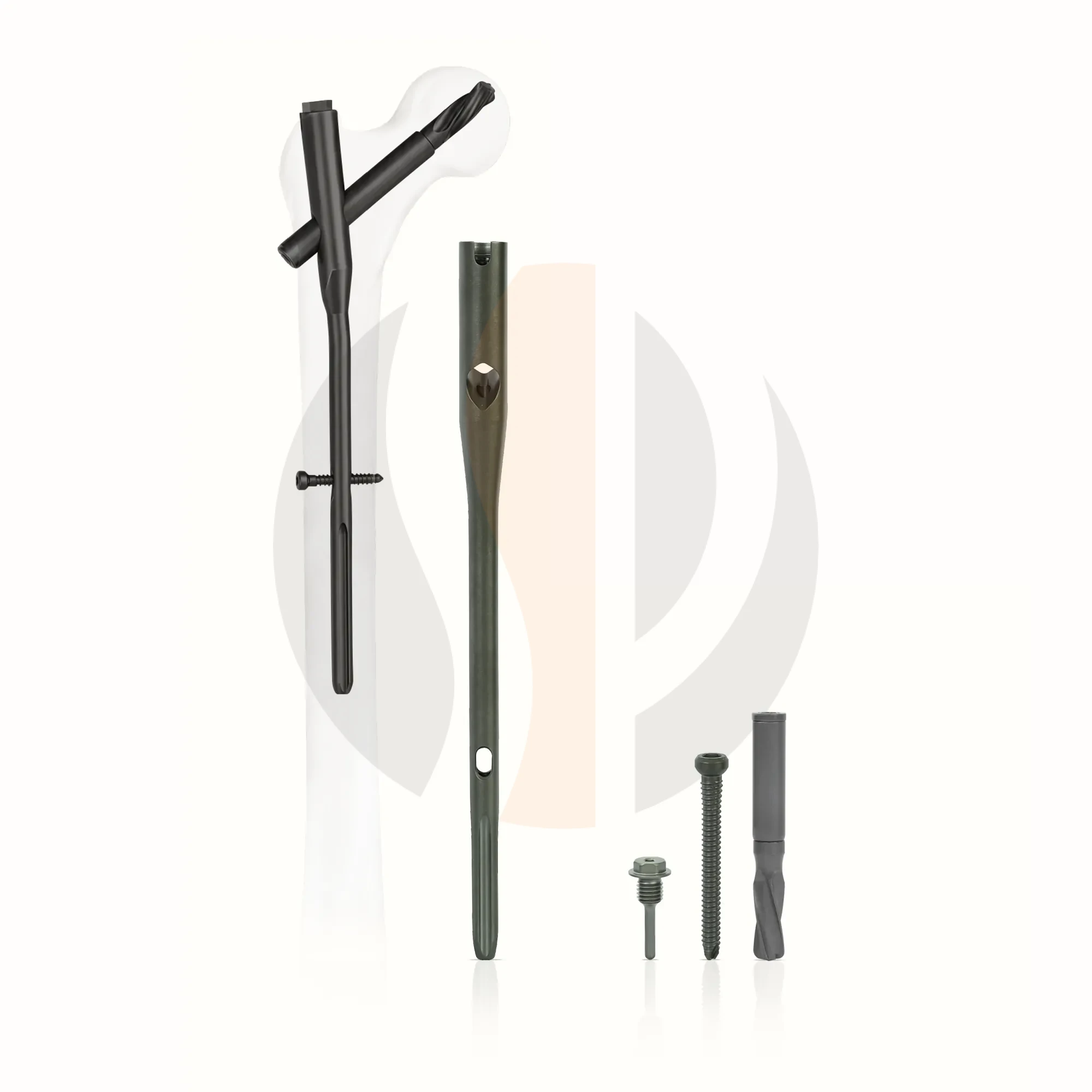

The PFN Nailing System brings together titanium nails and associated fixation components for proximal femoral fixation applications. The range includes short and long nails, spiral blades, end caps, and self-tapping locking screws.
Its anatomically contoured proximal geometry incorporates a 5° bend, while the detailed nail tables identify a 130° configuration. Multiple diameter and length options help clinical teams identify the configuration required for their planned procedure.
Explore the Stahlmann Pro Intramedullary Nailing System range for related products.
The catalogue describes a nail profile shaped for proximal femoral anatomy. The proximal bend and available dimensions are relevant to implant selection and should be assessed against the patient’s anatomy.
An anatomical profile does not establish an exact fit in every patient. Selection must follow the treating surgeon’s assessment and the product’s instructions for use.
The system includes a spiral blade as the proximal fixation component. The blade works with the selected nail to contribute to fixation and rotational control in the femoral head-neck segment.
The screenshots document a spiral blade configuration. They do not establish a separate interchangeable proximal screw option.
The catalogue illustrates anterior-posterior and medial-lateral locking options and describes static and dynamic locking capabilities.
The available arrangement should be confirmed for the selected nail. These features describe construct options rather than a guarantee of healing or suitability for every fracture pattern.
| Specification | Catalogue detail |
|---|---|
| Product family | PFN Nailing System |
| Nail configuration | 130° |
| Proximal bend | 5° |
| Material | Titanium |
| Shaft diameters in detailed ordering tables | 9, 10, 11, and 12 mm |
| Short nail lengths | 170, 200, and 240 mm |
| Long nail lengths | 300–420 mm |
| Long nail length increments | 20 mm |
| Long nail side options | Left and right |
| Proximal diameter for 9–11 mm shaft diameters | 11 mm |
| Proximal diameter for 12 mm shaft diameter | 12 mm |
The overview also mentions an 8 mm shaft diameter, but its ordering reference is not included in the supplied detailed tables. Confirm that configuration separately when enquiring.

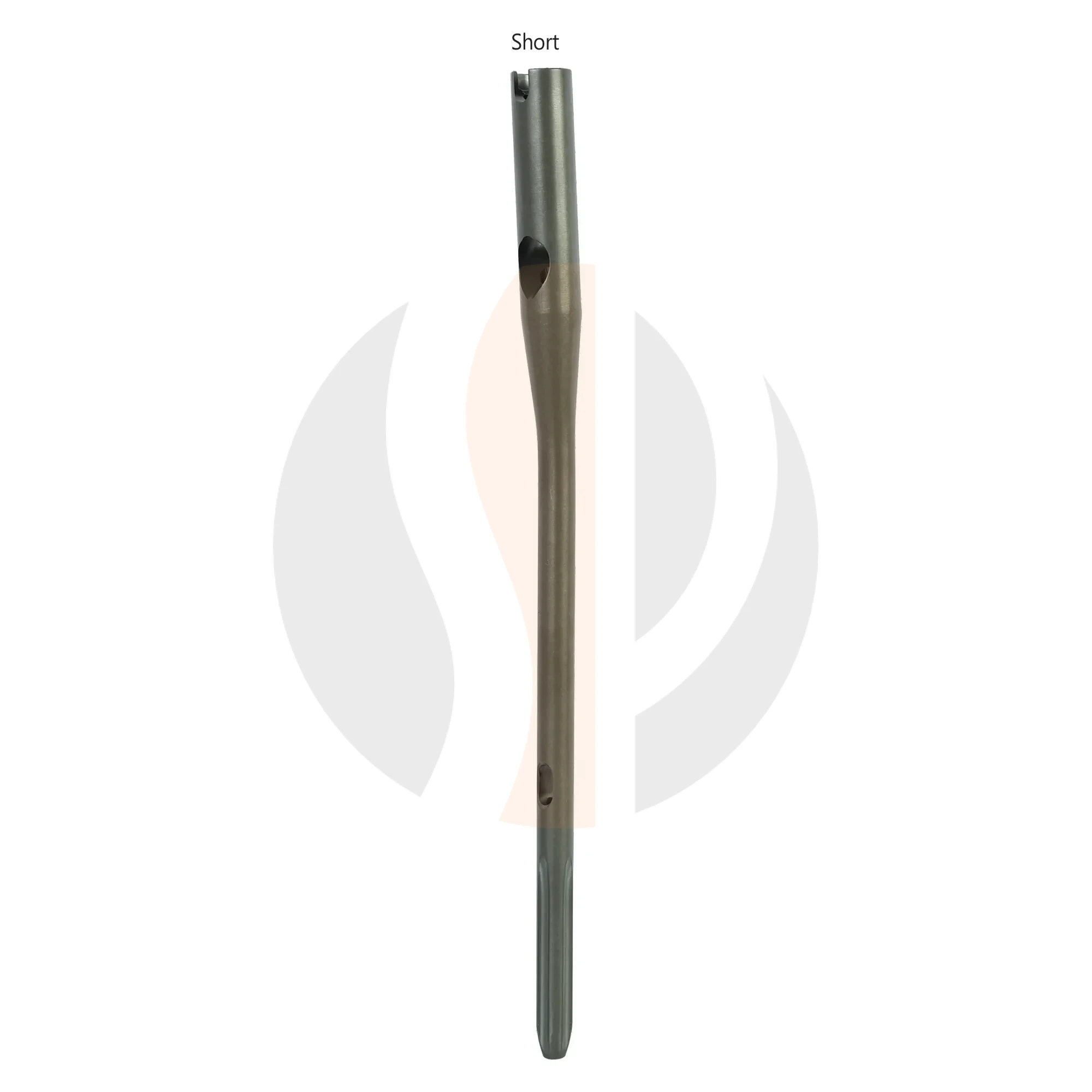

Short PFN nails are listed in four shaft diameters, with three length options for each diameter.
| Shaft diameter | Available lengths |
|---|---|
| 9 mm | 170, 200, 240 mm |
| 10 mm | 170, 200, 240 mm |
| 11 mm | 170, 200, 240 mm |
| 12 mm | 170, 200, 240 mm |
When requesting a short nail quotation, specify the diameter, length, quantity, and associated components.

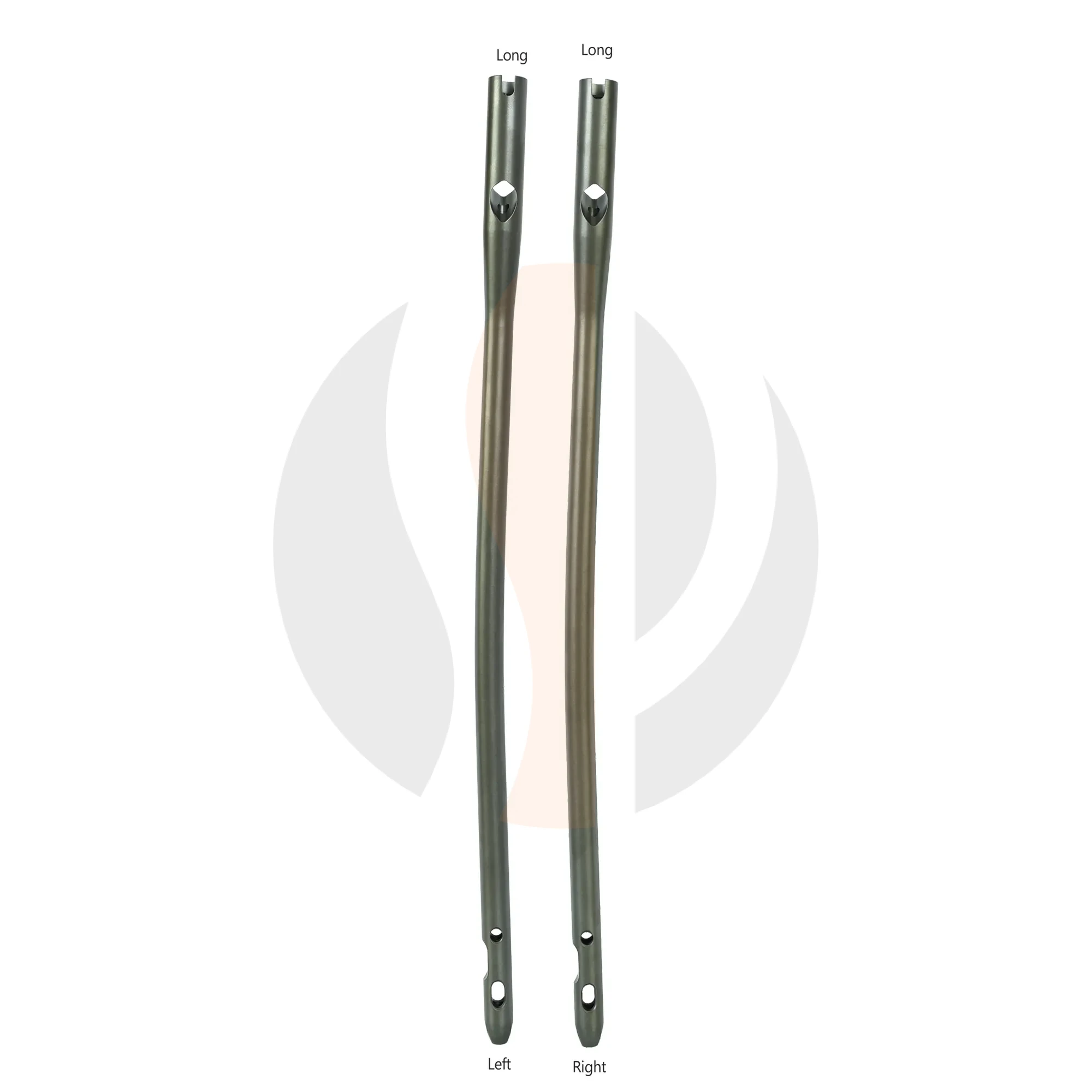

The long nail range provides separate left and right configurations.
| Shaft diameter | Available lengths | Configuration |
|---|---|---|
| 9 mm | 300, 320, 340, 360, 380, 400, 420 mm | Left and right |
| 10 mm | 300, 320, 340, 360, 380, 400, 420 mm | Left and right |
| 11 mm | 300, 320, 340, 360, 380, 400, 420 mm | Left and right |
| 12 mm | 300, 320, 340, 360, 380, 400, 420 mm | Left and right |
A complete long nail order should identify the required side as well as the shaft diameter and length. Catalogue listings should be checked against current availability before ordering.

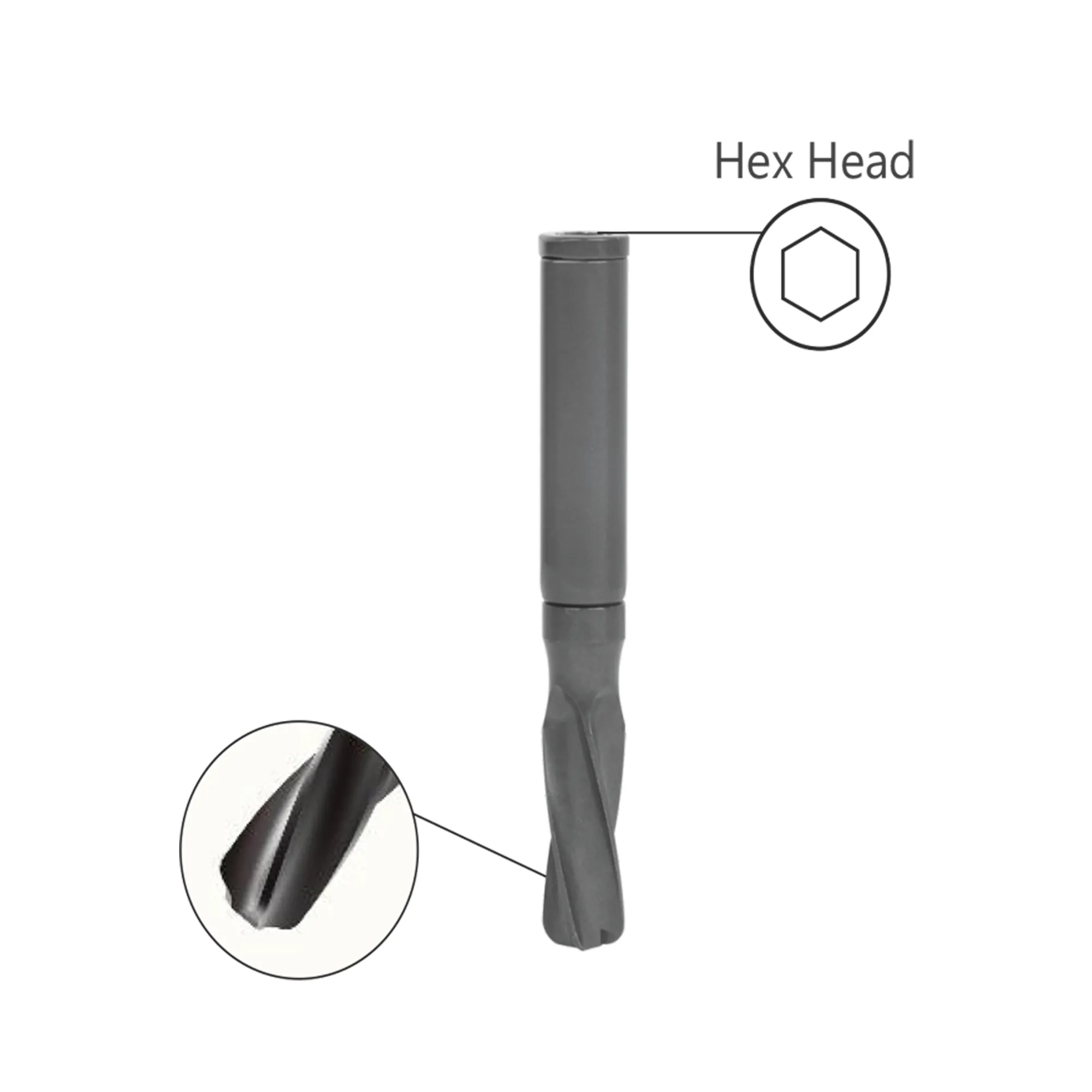

The spiral blade is listed for use with the PFN Nailing System. Available lengths range from 75 to 120 mm in 5 mm increments.
| Specification | Detail |
|---|---|
| Component | Spiral blade |
| Material | Titanium |
| Length range | 75–120 mm |
| Length increments | 5 mm |
| Drive configuration | Hex head shown in catalogue |
| Length | Product code |
|---|---|
| 75 mm | 6-214-75Ti |
| 80 mm | 6-214-80Ti |
| 85 mm | 6-214-85Ti |
| 90 mm | 6-214-90Ti |
| 95 mm | 6-214-95Ti |
| 100 mm | 6-214-100Ti |
| 105 mm | 6-214-105Ti |
| 110 mm | 6-214-110Ti |
| 115 mm | 6-214-115Ti |
| 120 mm | 6-214-120Ti |
The blade is designed to contribute to fixation and rotational stability. Its function should not be described as eliminating cut-out, collapse, or other fixation complications.

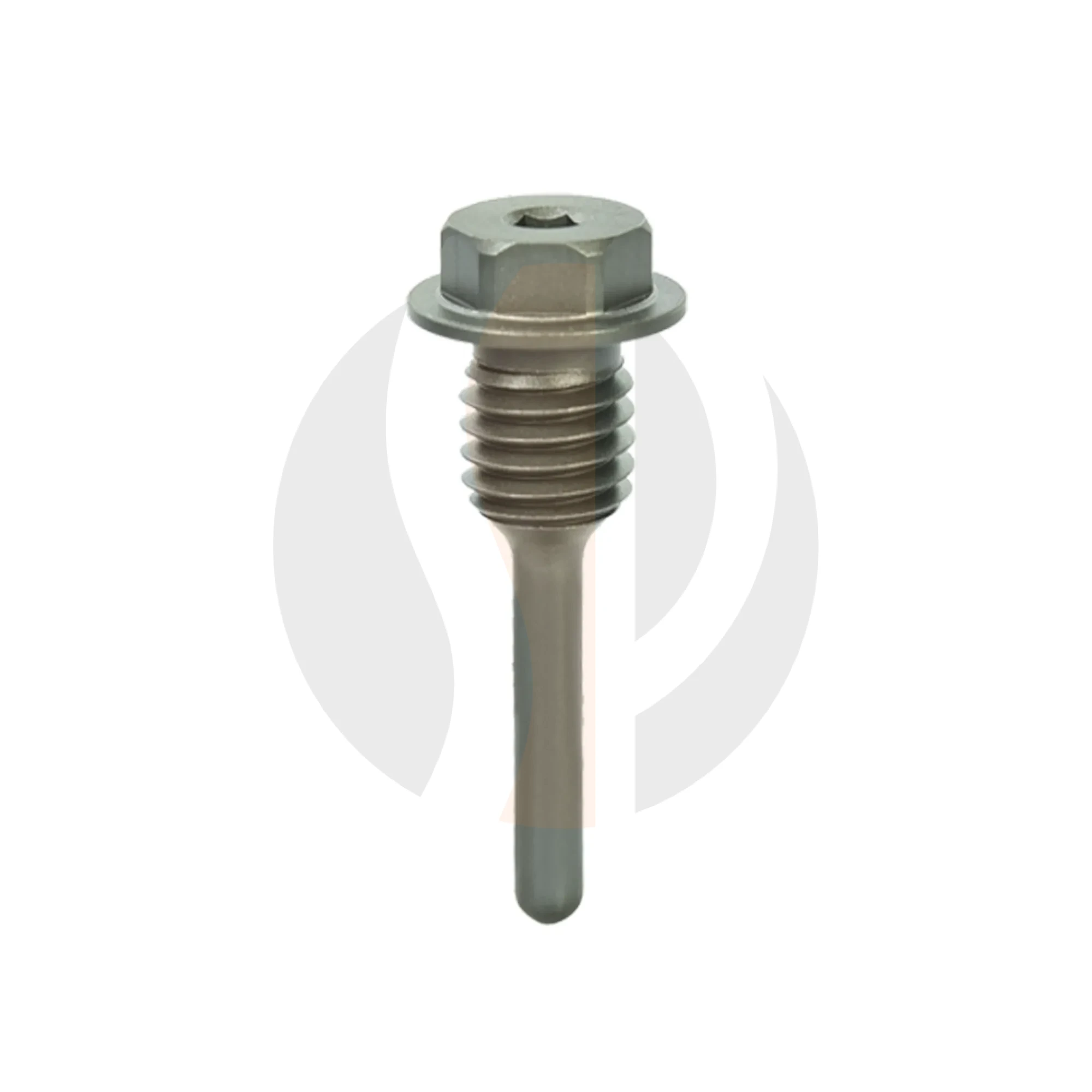

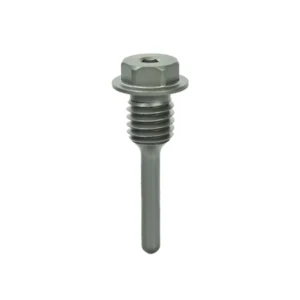

The catalogue lists 0, 5, 10, and 15 mm end caps. The 0 mm option is described as flush, while the extended options provide additional proximal extension when required.
End caps cover the proximal nail opening and are intended to limit tissue ingrowth into that opening. The catalogue also identifies a cannulated design for use with compatible guide-wire-assisted instrumentation.
| Listed extension | Product code |
|---|---|
| 0 mm | 6-212-00Ti |
| 5 mm | 6-212-05Ti |
| 10 mm | 6-212-10Ti |
| 15 mm | 6-212-15Ti |
End-cap selection depends on the nail position and applicable technique instructions. An extension does not replace correct implant placement.

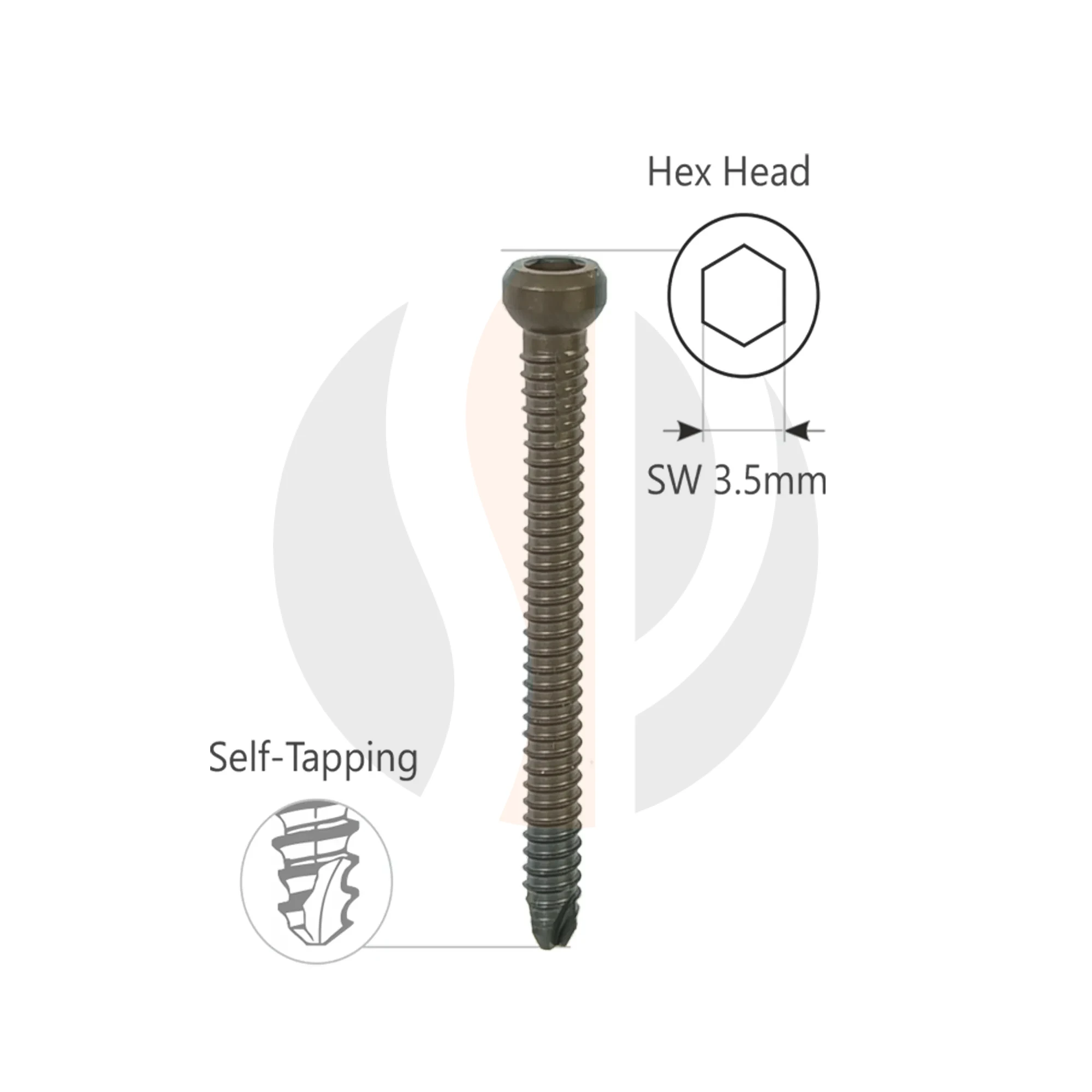

The PFN catalogue includes titanium locking screws with a 4.9 mm nominal diameter and 3.5 mm hexagonal drive.
| Specification | Detail |
|---|---|
| Screw diameter | 4.9 mm |
| Material | Titanium |
| Design | Self-tapping |
| Length range | 26–80 mm |
| Length increments | 2 mm |
| Drive size | 3.5 mm hex |
| Product-code format | 6-216-[length]Ti |
Available lengths are:
26, 28, 30, 32, 34, 36, 38, 40, 42, 44, 46, 48, 50, 52, 54, 56, 58, 60, 62, 64, 66, 68, 70, 72, 74, 76, 78, and 80 mm.
For example, the 26 mm screw is listed as 6-216-26Ti, while the 80 mm screw is 6-216-80Ti.
The catalogue describes thread placement closer to the screw head and a larger cross-section. Product-specific mechanical documentation should support any comparative strength claims.
The nail, spiral blade, locking screws, end cap, and instruments should be evaluated as one compatible system.
Before ordering, confirm:
Similar appearance or matching nominal dimensions do not establish compatibility with another implant system.
The supplied catalogue provides dimensions and component references. The selected product’s instructions for use should establish its indications, contraindications, precautions, and surgical technique.
Request confirmation of the exact titanium material specification, supplied condition, and applicable product documents. Sterility, certification coverage, and instrument contents should not be inferred from catalogue images.
For other fixation categories, explore the Stahlmann Pro Trauma Implants range.
To request a PFN nail price, provide the required diameter, length, and quantity. For long nails, include the left or right configuration.
Add the spiral blade, locking screws, end caps, and instrument requirements to receive an itemized quotation.
Hospitals and distributors in Africa, Latin America, and Russia can contact Stahlmann Pro with their destination, documentation needs, and delivery requirements.
Contact Stahlmann Pro for PFN Nailing System specifications, component references, and purchasing information.
Email: info@stahlmannpro.ae
Phone / WhatsApp: +971 50 975 0822
The supplied catalogue identifies titanium for the nails, spiral blades, end caps, and locking screws. Request the applicable material specification for the selected components.
Short nails are listed in 9, 10, 11, and 12 mm shaft diameters, with lengths of 170, 200, and 240 mm.
Long nails are listed in 9–12 mm shaft diameters and 300–420 mm lengths in 20 mm increments. Separate left and right versions are shown.
No. The catalogue identifies them separately. The 5° measurement describes the proximal bend, while the detailed nail tables specify the 130° configuration.
The catalogue lists 75–120 mm lengths in 5 mm increments.
The system lists 4.9 mm self-tapping locking screws, 26–80 mm long in 2 mm increments, with a 3.5 mm hex drive.
Confirm the quotation. Nails, blades, screws, end caps, and instruments may be listed separately.
