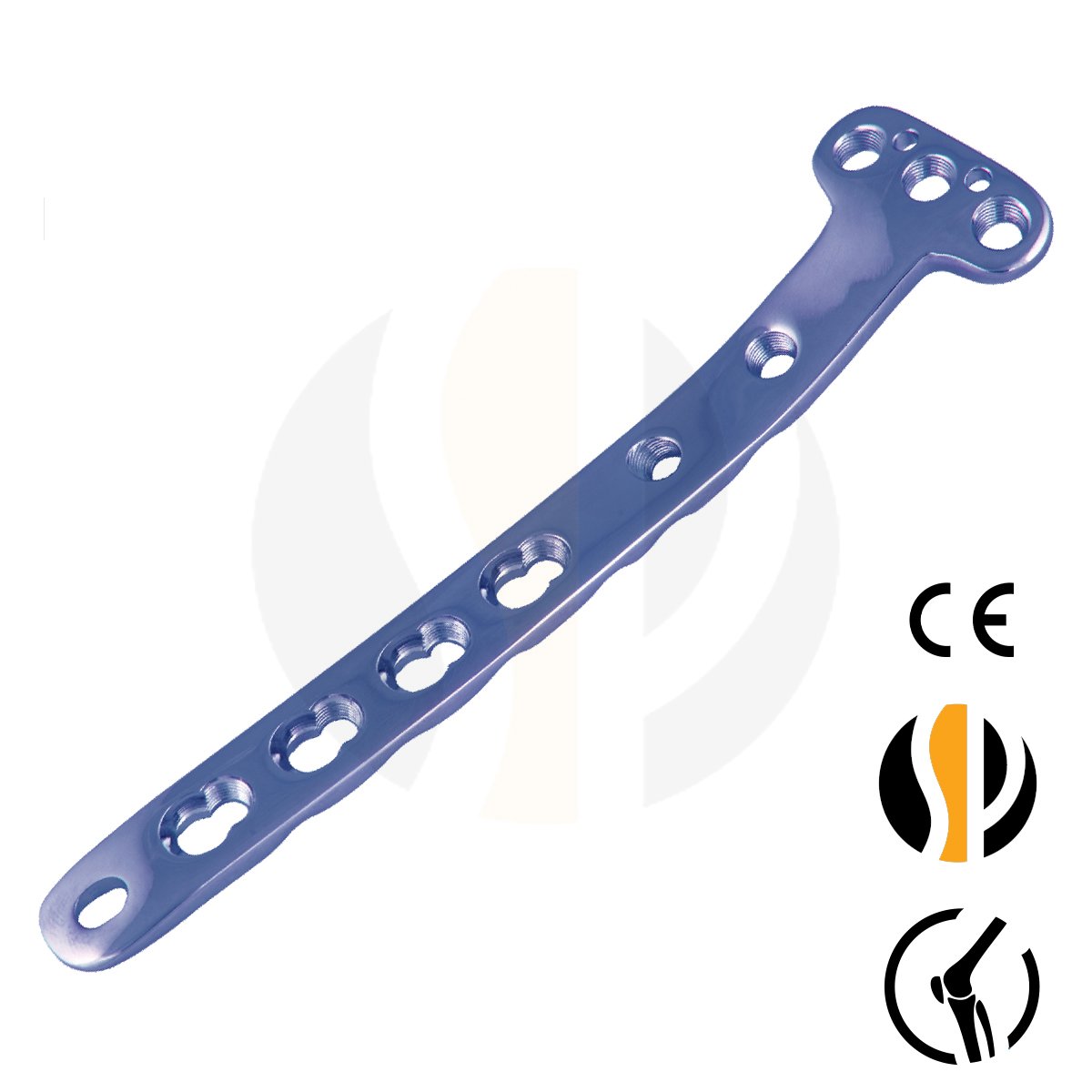

4.5 / 5.0 Proximal Tibial Medial Locking Plate

Name: 4.5/5.0 Proximal Tibial Medial Locking Plate | Stahlmann
Price: 400.00 AED
Availability: InStock

4.5 / 5.0 Proximal Tibial Medial Locking Plate

Specifications

Plates(Right & Left) available in both-Titanium & Stainless steel.
Plate features locking compression holes and round locking holes that accepts 4.5/5.0mm cortical and locking screws.
Plate available with 4,6,8,10,12,14 & 16 holes.

Indications for use

5 / 5.0mm Proximal Tibial Medial Locking Plates are intended to buttress metaphyseal fractures of the medial tibial plateau, split-type fractures of the medial tibial plateau, medial split fractures with associated depressions and split or depression fractures of the medial tibial plate.
The plates may also be used for fixation of the proximal quarter (lateral and medial) of the tibia, as well as segmental fractures of the proximal tibia.
5 / 5.0mm Proximal Tibial Medial Locking Plate may also be used for fixation of nonunions and malunions of the medial proximal tibia and tibia shaft, as well as opening and closing wedge tibial osteotomies

Product Specifications

Specifications

Plates(Right & Left) available in both-Titanium & Stainless steel.
Plate features locking compression holes and round locking holes that accepts 4.5/5.0mm cortical and locking screws.
Plate available with 4,6,8,10,12,14 & 16 holes.

Indications for use

5 / 5.0mm Proximal Tibial Medial Locking Plates are intended to buttress metaphyseal fractures of the medial tibial plateau, split-type fractures of the medial tibial plateau, medial split fractures with associated depressions and split or depression fractures of the medial tibial plate.
The plates may also be used for fixation of the proximal quarter (lateral and medial) of the tibia, as well as segmental fractures of the proximal tibia.
5 / 5.0mm Proximal Tibial Medial Locking Plate may also be used for fixation of nonunions and malunions of the medial proximal tibia and tibia shaft, as well as opening and closing wedge tibial osteotomies

Holes	Stainless Steel Right	Titanium Right	Stainless Steel Left	Titanium Left
4	3-110-04R	3-110-04R-Ti	3-110-04L	3-110-04L-Ti
6	3-110-06R	3-110-06R-Ti	3-110-06L	3-110-06L-Ti
8	3-110-08R	3-110-08R-Ti	3-110-08L	3-110-08L-Ti
10	3-110-10R	3-110-10R-Ti	3-110-10L	3-110-10L-Ti
12	3-110-12R	3-110-12R-Ti	3-110-12L	3-110-12L-Ti
14	3-110-14R	3-110-14R-Ti	3-110-14L	3-110-14L-Ti
16	3-110-16R	3-110-16R-Ti	3-110-16L	3-110-16L-Ti

FAQs

What is the 4.5 / 5.0 Proximal Tibial Medial Locking Plate used for?

The 4.5 / 5.0 Proximal Tibial Medial Locking Plate is designed for fixation of fractures involving the medial tibial plateau and proximal tibia, including split, depression, and metaphyseal fractures.

What screw sizes are compatible with this proximal tibial locking plate?

This plate features locking compression and round locking holes designed to accept 4.5 mm cortical and 5.0 mm locking screws.

Is the Proximal Tibial Medial Locking Plate available for both sides?

Yes. The plate is available in right and left configurations, allowing selection according to the surgical application.

What materials are available for this tibial locking plate?

The 4.5 / 5.0 Proximal Tibial Medial Locking Plate is available in titanium and stainless steel options.

How many holes are available in the Proximal Tibial Medial Locking Plate?

The plate is available in 4, 6, 8, 10, 12, 14, and 16-hole configurations, providing different options for fracture fixation requirements.
