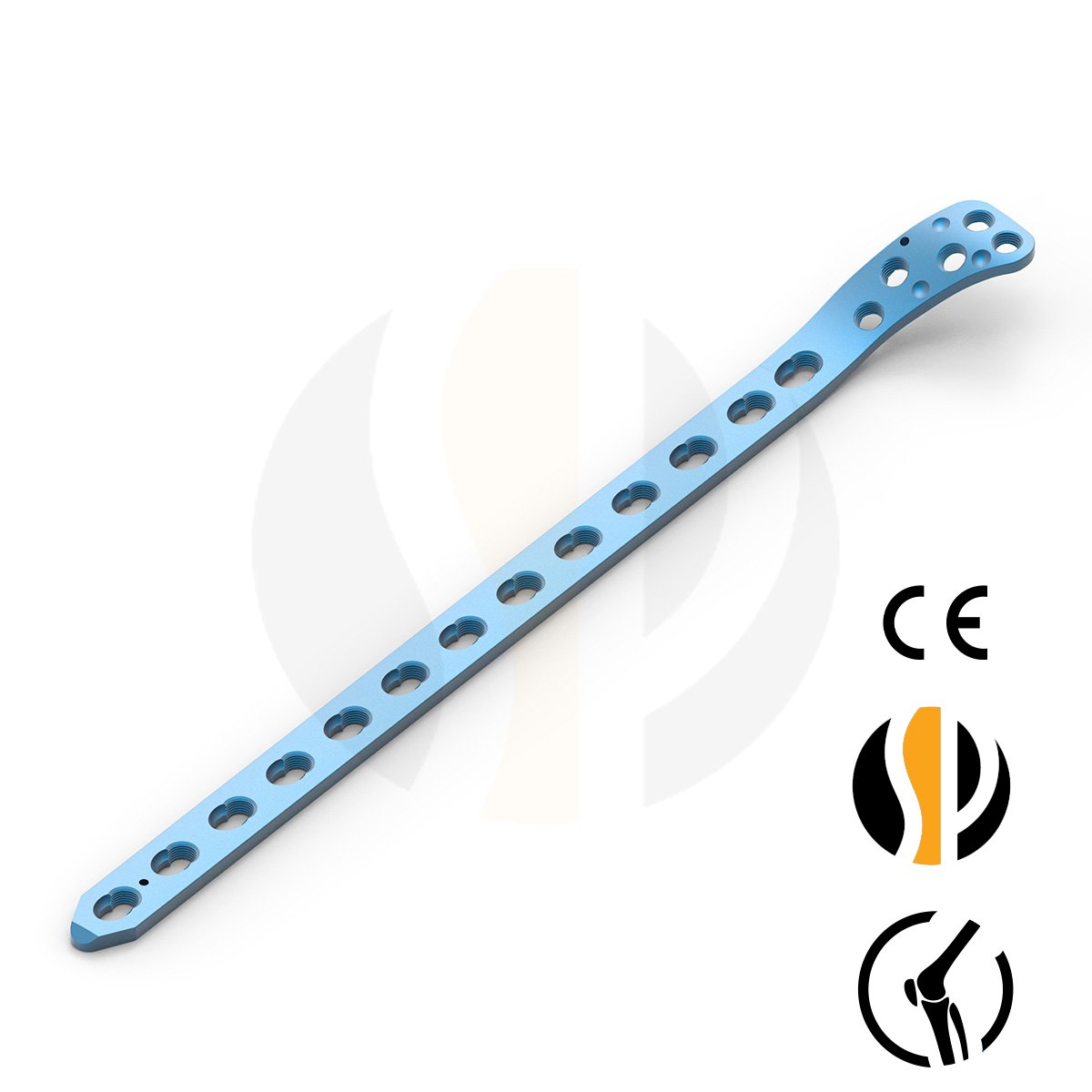

4.5 / 5.0mm Proximal Lateral Tibial Locking Plate

4.5 / 5.0mm Proximal Lateral Tibial Locking Plate

4.5 / 5.0mm Proximal Lateral Tibial Locking Plate

Specifications

  • Plates(Right & Left) available in both-Titanium & Stainless steel.
  • All holes accommodate Cortex Screw Ø 4.5mm, Self Tapping, and Locking Screw Ø 5.0mm.
  • Plate available with 5,7,9,11 & 13 holes.



Indications for use

  • The proximal lateral Tibial Safety Lock Plate 4.5/5.0 is intended for the treatment of nonunions, malunions, and fractures of the proximal tibia, including simple, comminuted, lateral wedge, depression medial wedge, bicondylar, a combination of lateral wedge and depression, and fractures with associated shaft fracture.
get quote

Product Specifications

Specifications

  • Plates(Right & Left) available in both-Titanium & Stainless steel.
  • All holes accommodate Cortex Screw Ø 4.5mm, Self Tapping, and Locking Screw Ø 5.0mm.
  • Plate available with 5,7,9,11 & 13 holes.



Indications for use

  • The proximal lateral Tibial Safety Lock Plate 4.5/5.0 is intended for the treatment of nonunions, malunions, and fractures of the proximal tibia, including simple, comminuted, lateral wedge, depression medial wedge, bicondylar, a combination of lateral wedge and depression, and fractures with associated shaft fracture.
Holes Stainless Steel

Right

 Titanium

Right

 Stainless Steel

Left

 Titanium

Left
5 3-118-05R 3-118-05R-Ti 3-118-05L 3-118-05L-Ti
7 3-118-07R 3-118-07R-Ti 3-118-07L 3-118-07L-Ti
9 3-118-09R 3-118-09R-Ti 3-118-09L 3-118-09L-Ti
11 3-118-11R 3-118-11R-Ti 3-118-11L 3-118-11L-Ti
13 3-118-13R 3-118-13R-Ti 3-118-13L 3-118-13L-Ti
