Specifications
Indications for use

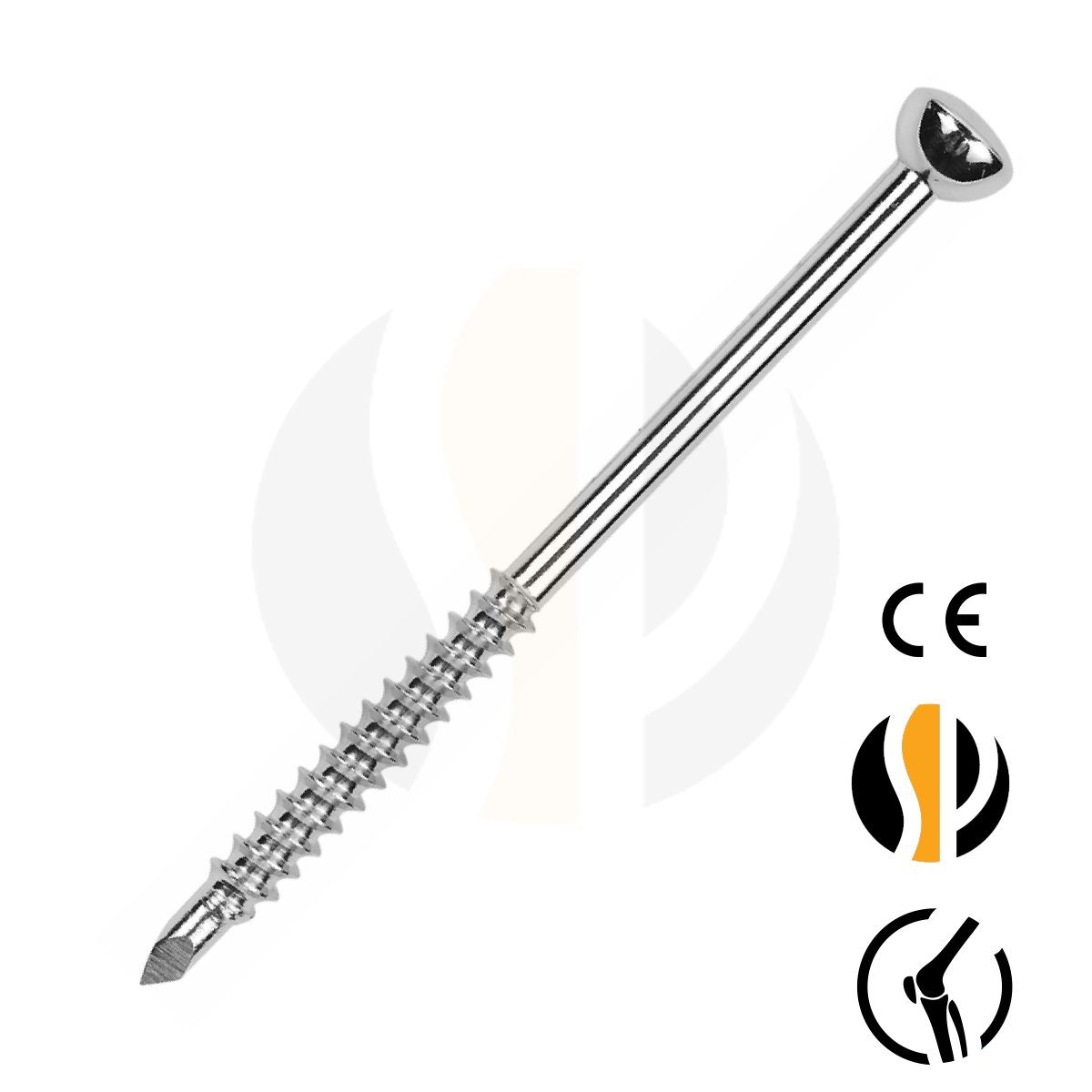

4.5mm Malleolar screws are indicated for the fixation of large fragments in the cancellous bones.
Specifications
Indications for use
4.5mm Malleolar screws are indicated for the fixation of large fragments in the cancellous bones.
| Length (mm) | Stainless Steel | Titanium |
| 25 | 3-440-25 | 3-440-25Ti |
| 30 | 3-440-30 | 3-440-30Ti |
| 35 | 3-440-35 | 3-440-35Ti |
| 40 | 3-440-40 | 3-440-40Ti |
| 45 | 3-440-45 | 3-440-45Ti |
| 50 | 3-440-50 | 3-440-50Ti |
| 55 | 3-440-55 | 3-440-55Ti |
| 60 | 3-440-60 | 3-440-60Ti |
| 65 | 3-440-65 | 3-440-65Ti |
| 70 | 3-440-70 | 3-440-70Ti |
| 75 | 3-440-75 | 3-440-75Ti |
| 80 | 3-440-80 | 3-440-80Ti |
| 85 | 3-440-85 | 3-440-85Ti |
| 90 | 3-440-90 | 3-440-90Ti |
| 95 | 3-440-95 | 3-440-95Ti |
| 100 | 3-440-100 | 3-440-100Ti |
4.5mm Malleolar Bone Screws are designed for fixation of large bone fragments, particularly in cancellous bone. They are used as part of orthopedic fracture fixation procedures.
These screws are available in lengths ranging from 25mm to 100mm, with a consistent 4.5mm diameter. This range provides options for different surgical fixation requirements.
Yes. The 4.5mm Malleolar Bone Screws feature a partially threaded shaft, which is designed to support appropriate fragment fixation during orthopedic procedures.
The 4.5mm Malleolar Bone Screws are available in both stainless steel and titanium versions. The appropriate material should be selected according to the surgeon's clinical requirements and applicable surgical protocols.
A 3.2mm drill bit is specified for these screws. Surgical instruments and techniques should be selected and used according to the manufacturer's instructions and the surgeon's professional judgment.
