Specification
Indications for use
Specification
Indications for use
| Holes | Right Stainless Steel | Right Titanium | Left Stainless Steel | Left Titanium |
| 3 | 2-110-03R | 2-110-03R-Ti | 2-110-03L | 2-110-03L-Ti |
| 5 | 2-110-05R | 2-110-05R-Ti | 2-110-05L | 2-110-05L-Ti |
| 7 | 2-110-07R | 2-110-07R-Ti | 2-110-07L | 2-110-07L-Ti |
| 9 | 2-110-09R | 2-110-09R-Ti | 2-110-09L | 2-110-09L-Ti |
| 14 | 2-110-14R | 2-110-14R-Ti | 2-110-14L | 2-110-14L-Ti |

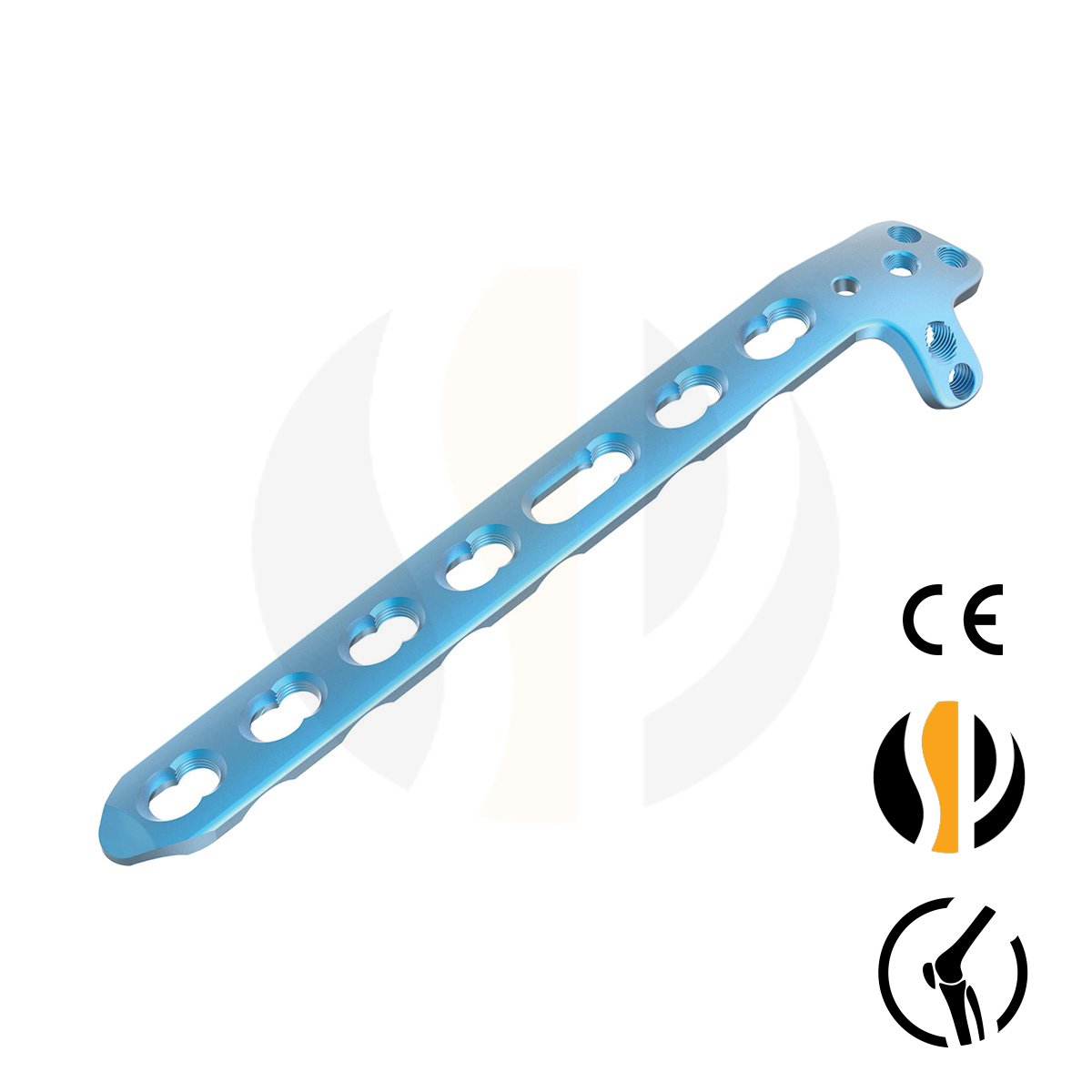

It is designed for fixation of intraarticular and supracondylar distal humerus fractures, as well as non unions of the distal humerus.
The plate accepts 2.7mm to 3.5mm cortical and locking screws through its locking compression and round locking holes.
Yes. The plate is available in right and left configurations to accommodate the surgical requirements of the affected side.
The plate is available in both titanium and stainless steel options.
The plate is available in 3, 5, 7, 9, and 14 hole configurations, allowing surgeons to select an appropriate plate length for the fixation requirements.
