2.4mm T Locking Plate in titanium, featuring 4 to 7 shaft holes and 3 head holes, with lengths from 35.8mm to 57.4mm. Supports 2.4mm cortical and locking screws. View sizes and catalogue references.

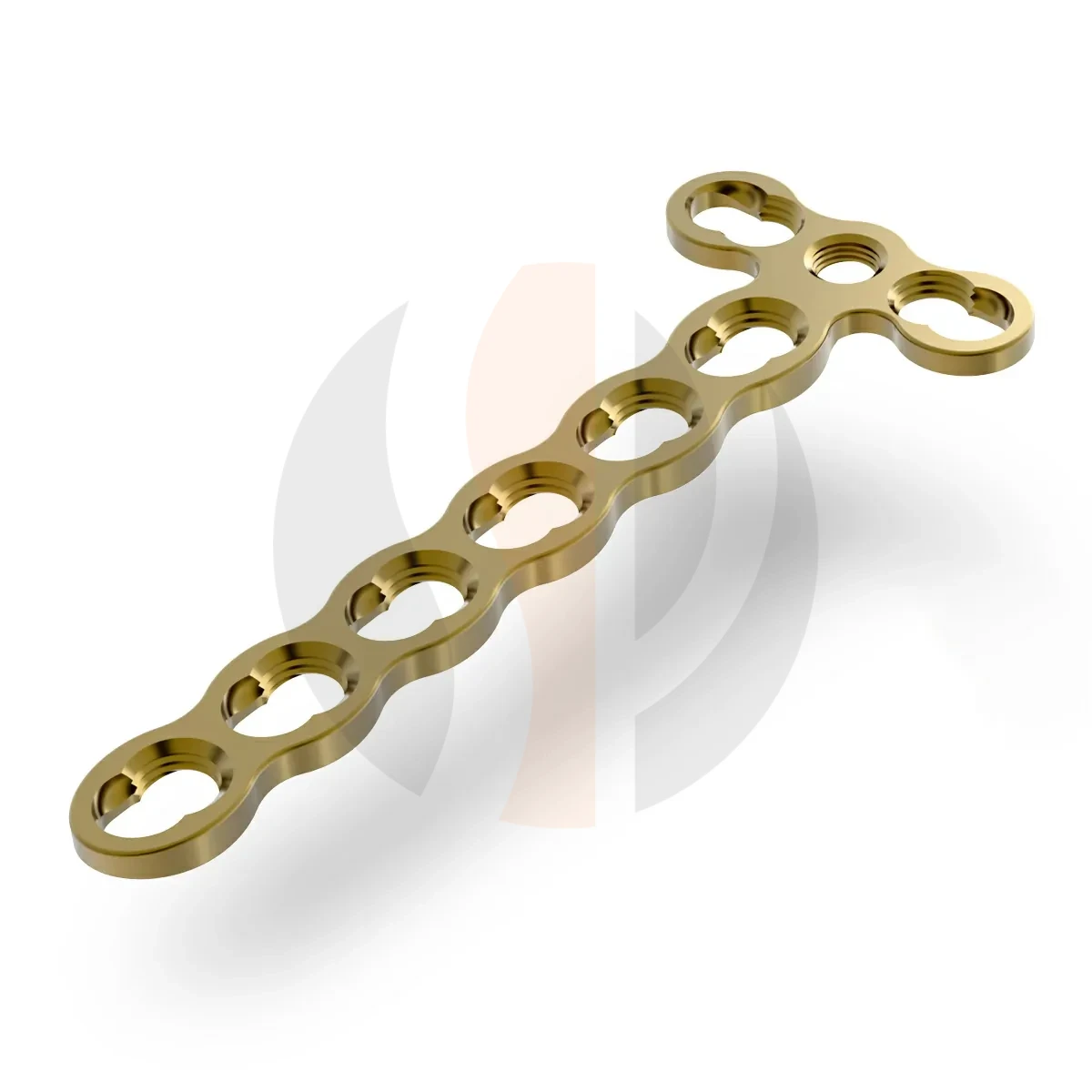

2.4mm T Locking Plate is a titanium plate in the StahlmannPro 2.4mm Hand System, available with 4 to 7 shaft holes and 3 head holes, with lengths from 35.8mm to 57.4mm. The specification table below identifies each listed configuration and its product reference, making it easier to match a quotation or replenishment request to the correct implant.
All holes are listed as supporting 2.4mm cortical and locking screws. The plate features compression and locking holes. Confirm the exact plate, screw and instrument combination against the applicable product documentation before use.
The catalogue lists proximal and distal extra-articular, partial-articular and complete-articular fractures of the hand phalanges. These are catalogue indications, not a recommendation for an individual case. Suitability depends on clinical assessment and the current instructions for the specific device.
| Holes | Length (mm) | Titanium |
|---|---|---|
| Shaft 4, Head 3 | 35.8 | 4-408-04Ti |
| Shaft 5, Head 3 | 43.0 | 4-408-05Ti |
| Shaft 6, Head 3 | 50.2 | 4-408-06Ti |
| Shaft 7, Head 3 | 57.4 | 4-408-07Ti |
Send the selected catalogue references, quantities and delivery destination to StahlmannPro. Include any requirements for dimensional drawings, current device instructions and packaging information so the requested specification can be confirmed.
This plate is listed with 4 to 7 shaft holes and 3 head holes, with lengths from 35.8mm to 57.4mm. Use the specification table to match the required configuration to its titanium catalogue reference.
All holes are listed as supporting 2.4mm cortical and locking screws. Confirm the exact component and instrument combination in the applicable system documentation.
The catalogue lists proximal and distal extra-articular, partial-articular and complete-articular fractures of the hand phalanges. The treating surgeon must assess suitability for the individual case.
The T Locking Plate has 3 head holes and 4 to 7 shaft holes. The T Adaption Plate is listed with 2 head holes and 7 shaft holes. They have different references and should be ordered by the exact configuration.
Provide the product name, hole configuration, catalogue reference, length, quantity and delivery destination. Include a separate quantity for each required reference.
