Specifications

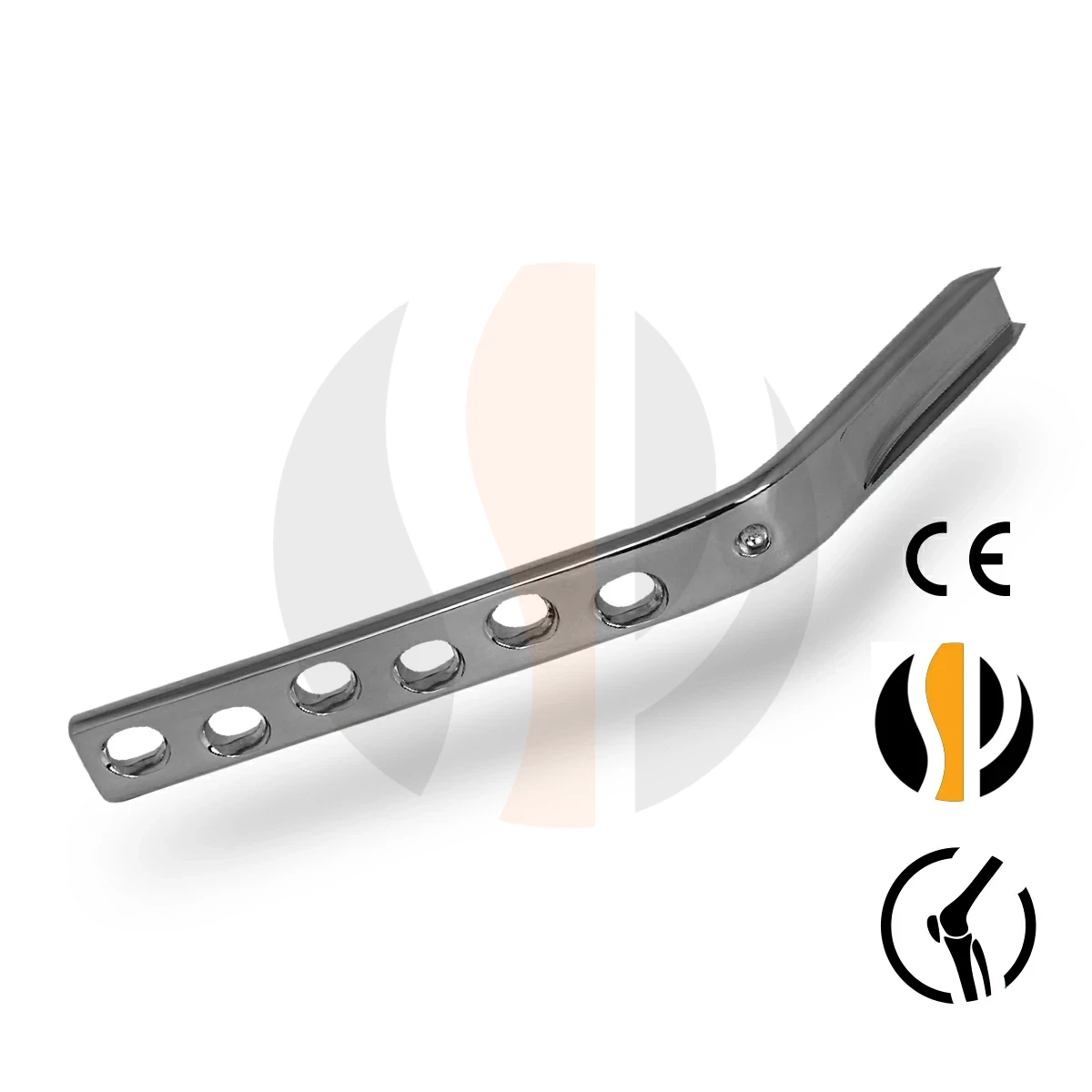

• The angle between blade and shaft is 130°.
• It uses 4.5mm Cortical screws.
Indications for use
It is used for the treatment of proximal femoral neck fractures in association with
subtrochanteric fractures or pertochanteric fractures.
Specifications
• The angle between blade and shaft is 130°.
• It uses 4.5mm Cortical screws.
Indications for use
It is used for the treatment of proximal femoral neck fractures in association with
subtrochanteric fractures or pertochanteric fractures.
| Holes | Plate L (mm) | Blade L (mm) | Stainless Steel | Titanium |
|---|---|---|---|---|
| 4 | 60 | 50 | 6-108-01 | 6-108-01Ti |
| 4 | 60 | 60 | 6-108-02 | 6-108-02Ti |
| 4 | 60 | 70 | 6-108-03 | 6-108-03Ti |
| 4 | 60 | 75 | 6-108-04 | 6-108-04Ti |
| 4 | 60 | 80 | 6-108-05 | 6-108-05Ti |
| 4 | 60 | 85 | 6-108-06 | 6-108-06Ti |
| 4 | 60 | 90 | 6-108-07 | 6-108-07Ti |
| 4 | 60 | 95 | 6-108-08 | 6-108-08Ti |
| 4 | 60 | 100 | 6-108-09 | 6-108-09Ti |
| 6 | 104 | 50 | 6-108-10 | 6-108-10Ti |
| 6 | 104 | 60 | 6-108-11 | 6-108-11Ti |
| 6 | 104 | 70 | 6-108-12 | 6-108-12Ti |
| 6 | 104 | 75 | 6-108-13 | 6-108-13Ti |
| 6 | 104 | 80 | 6-108-14 | 6-108-14Ti |
| 6 | 104 | 85 | 6-108-15 | 6-108-15Ti |
| 6 | 104 | 90 | 6-108-16 | 6-108-16Ti |
| 6 | 104 | 95 | 6-108-17 | 6-108-17Ti |
| 6 | 104 | 100 | 6-108-18 | 6-108-18Ti |
| 9 | 152 | 50 | 6-108-19 | 6-108-19Ti |
| 9 | 152 | 60 | 6-108-20 | 6-108-20Ti |
| 9 | 152 | 70 | 6-108-21 | 6-108-21Ti |
| 9 | 152 | 75 | 6-108-22 | 6-108-22Ti |
| 9 | 152 | 80 | 6-108-23 | 6-108-23Ti |
| 9 | 152 | 85 | 6-108-24 | 6-108-24Ti |
| 9 | 152 | 90 | 6-108-25 | 6-108-25Ti |
| 9 | 152 | 95 | 6-108-26 | 6-108-26Ti |
| 12 | 200 | 50 | 6-108-27 | 6-108-27Ti |
| 12 | 200 | 60 | 6-108-28 | 6-108-28Ti |
| 12 | 200 | 70 | 6-108-29 | 6-108-29Ti |
| 12 | 200 | 80 | 6-108-30 | 6-108-30Ti |
