The Ilizarov Type External Fixator System is a circular external fixation platform for selected orthopedic stabilization and reconstruction applications. Compatible rings, connecting rods, fixation attachments, and adjustment components form the frame required for the planned treatment.
Request available configurations for tibial fixation, deformity correction, or bone lengthening applications, subject to the system’s documented indications. Contact our team for component specifications and an itemized quotation.
The Ilizarov Type External Fixator System provides a circular frame platform for selected external fixation applications. The frame remains outside the limb and connects to bone through compatible wires or half-pins.
An Ilizarov external fixator is assembled according to the required anatomy and treatment plan. Ring dimensions, connecting elements, fixation attachments, and instruments must be considered together when defining the construct.
Hospitals and distributors can explore the External Fixation System range or request the configuration required by their clinical team.
The frame uses connected ring elements to support the selected fixation arrangement. Its configuration depends on the location and purpose of treatment.
Specify the required ring dimensions, quantities, and configuration. Where full rings, partial rings, or 2/3 rings are required, confirm their availability and ordering references.

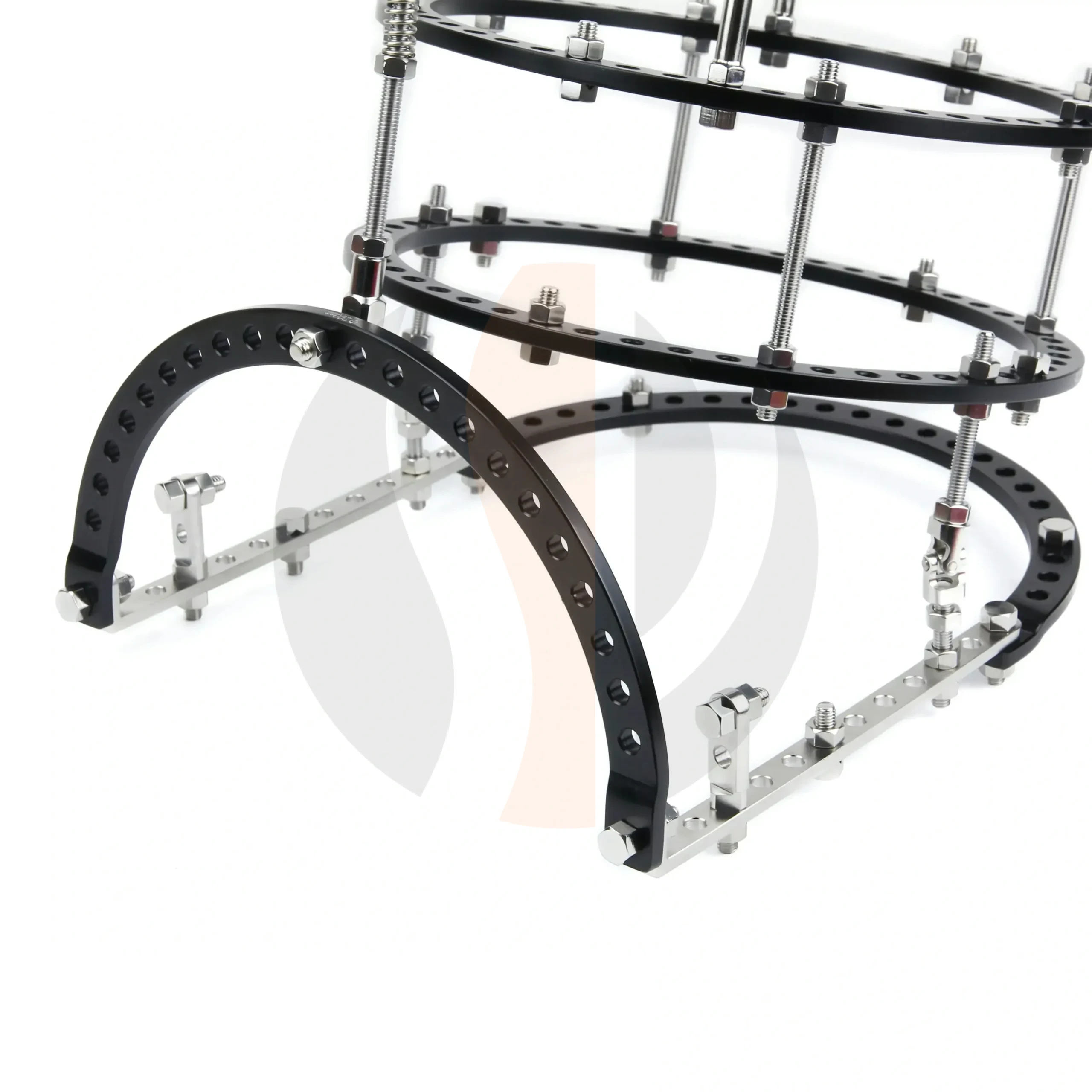

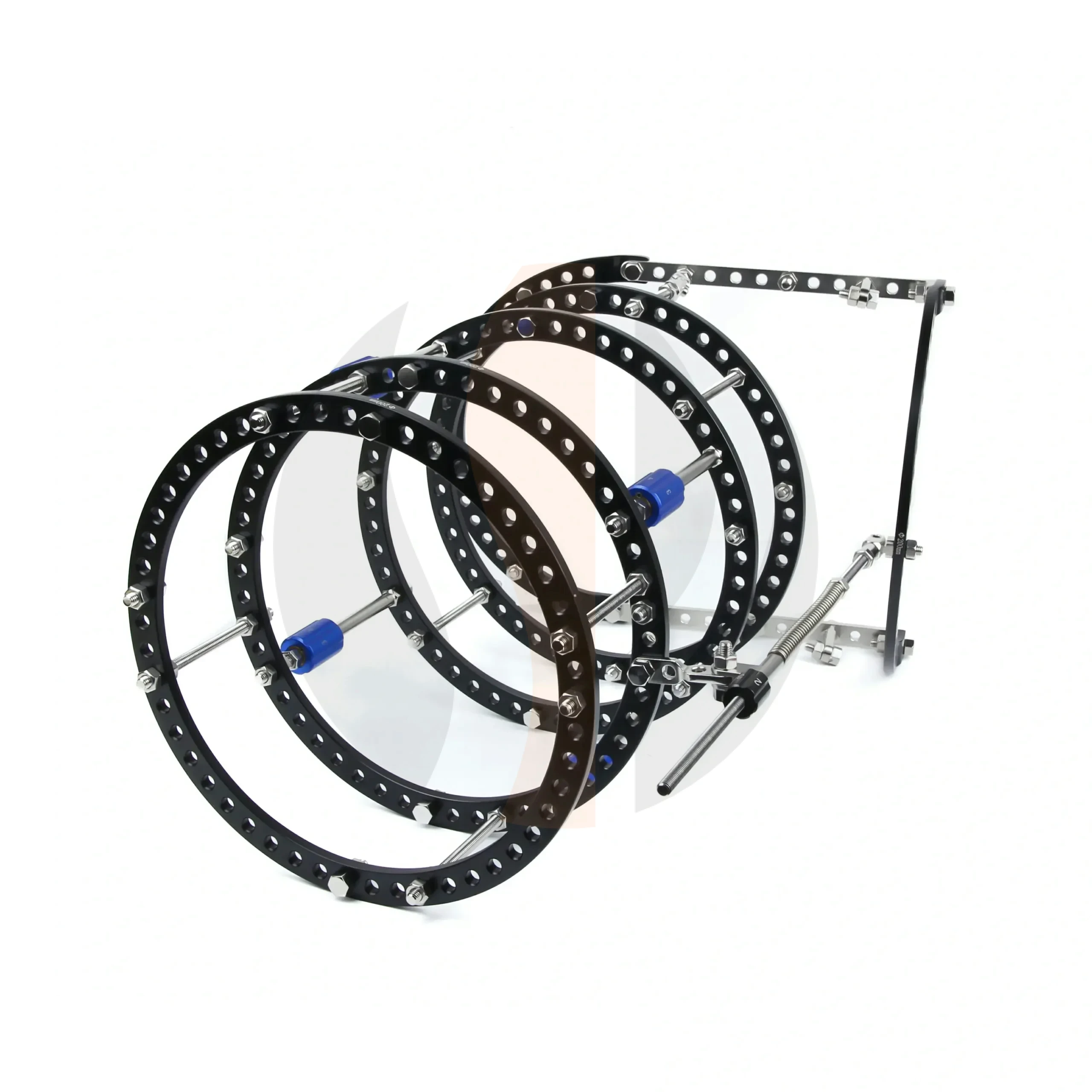

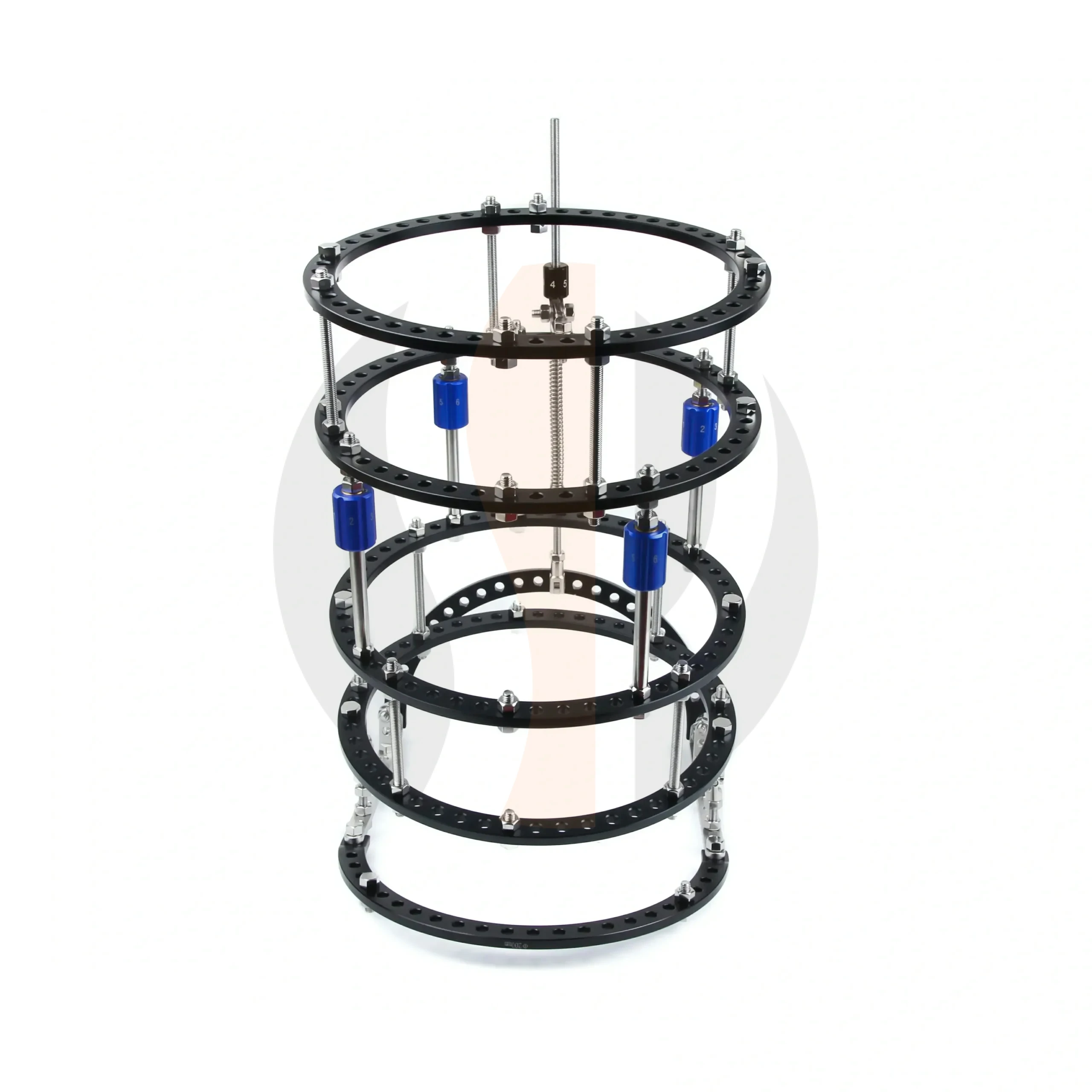

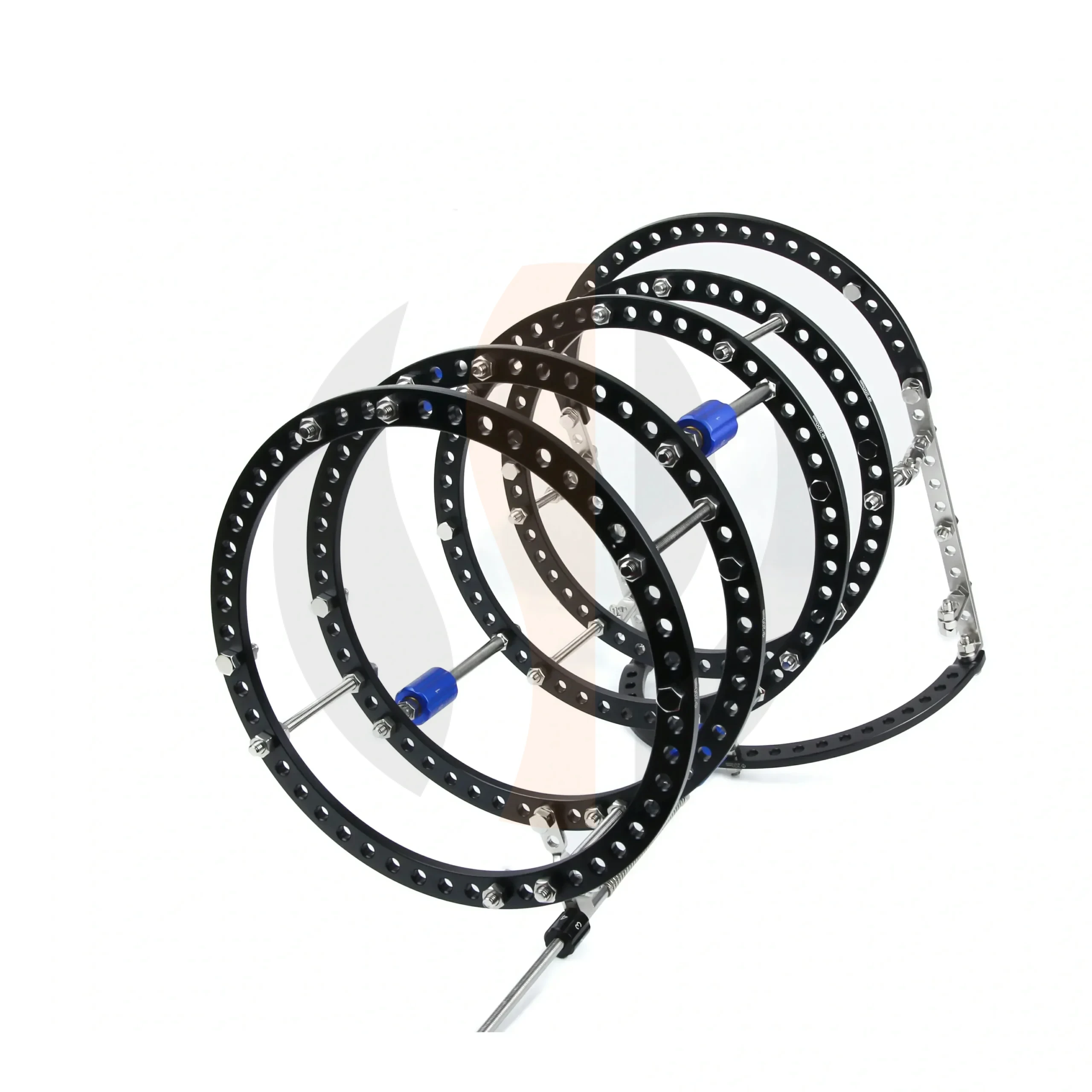

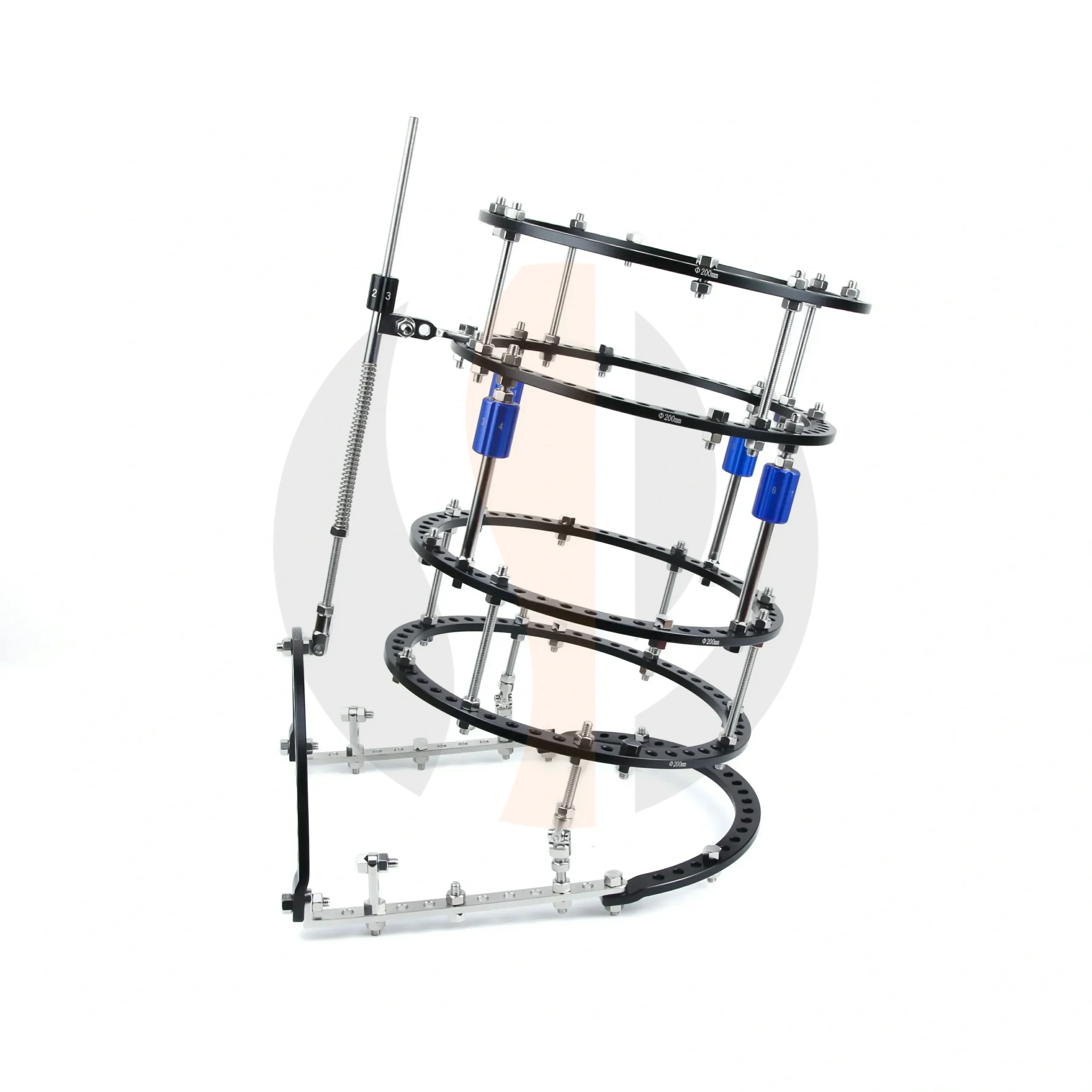

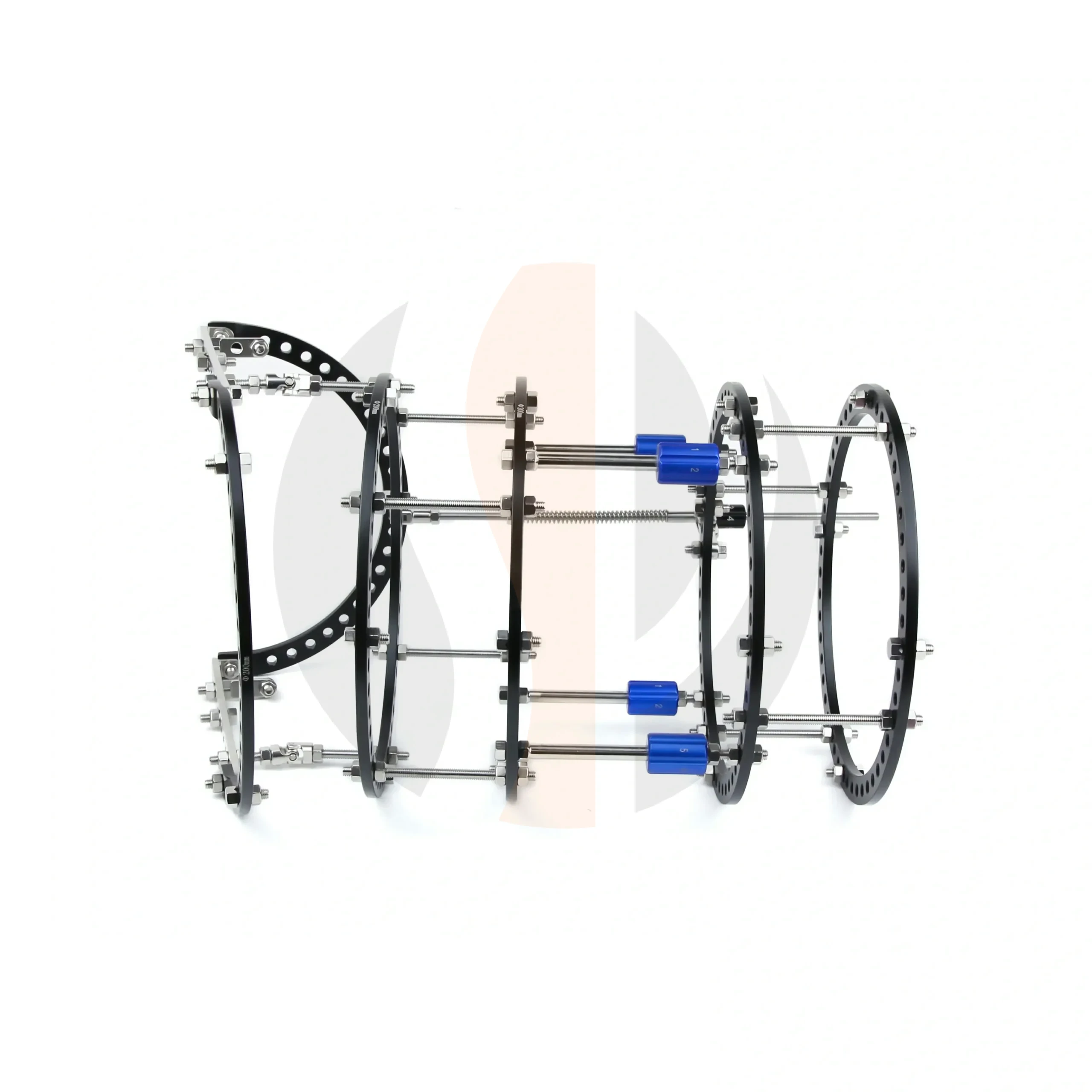

A product photograph illustrates an assembly; the itemized component list establishes what will be supplied.
Connecting rods and fastening components link the frame sections. Where adjustment mechanisms or hinges are required, confirm their specifications and documented function.
A conventional Ilizarov ring fixator should not automatically be described as a computer-assisted hexapod system. These configurations require different components and documentation.
Compatible wire fixation hardware and half-pin attachments connect the frame to its fixation elements.
Confirm the supported wire or pin dimensions, matching clamps, and required instruments. Similar appearance does not establish compatibility between different systems.
| Component group | Details to specify |
|---|---|
| Ring elements | Diameter, configuration, material, and quantity |
| Connecting rods | Length, thread specification, and quantity |
| Fastening hardware | Matching nuts, bolts, and connectors |
| Wire fixation attachments | Compatible wire dimensions and references |
| Half-pin attachments | Supported pin dimensions and clamp references |
| Adjustment components | Available mechanisms and matching interfaces |
| Foot assembly components | Required configuration and connectors |
| Instruments | Assembly tools and fixation instruments |
| Replacement parts | Individual product references |
For repeat orders, retain the confirmed component list. This helps purchasing teams request the same configuration consistently.
| Specification | Product information |
|---|---|
| Product name | Ilizarov Type External Fixator System |
| System category | Circular external fixation |
| Frame assembly | Configuration-specific |
| Ring sizes | Request the available size list |
| Full and partial ring options | Confirm available configurations |
| Material | Confirm for each selected component |
| Bone fixation connection | Compatible wires and/or half-pins |
| Connecting elements | Confirm rods, connectors, and adjustment components |
| Foot correction components | Confirm availability and documented use |
| Instrument requirements | Specify the required instrument list |
| Supplied condition | Confirm product labeling and processing requirements |
| Order contents | As itemized in the quotation |
Exact sizes, material grades, and component quantities should be supported by the selected product’s specification sheet.
Circular external fixation is used in selected fracture stabilization and reconstruction procedures. An Ilizarov external fixator for the tibia must be configured around the clinical requirements and available fixation.
A ring fixator for a tibial fracture is not automatically the same assembly as one used for a tibial plateau fracture, femoral reconstruction, or foot correction. Each application requires suitable components and product-specific documentation.
For enquiries involving a 2/3 ring fixator for tibia and femur fracture applications, identify the intended anatomical location and requested configuration. A partial-ring description alone does not establish suitability for both bones.
Bone lengthening with an external fixator uses the principles of distraction osteogenesis in appropriately selected patients. A specialist treatment plan controls the relationship between bone segments while new bone develops.
The device itself does not establish a safe lengthening target, adjustment rate, or treatment duration.
An enquiry for a bone lengthening ring fixator should therefore identify the required frame and components. It should not rely on a general description such as “bone stretcher machine.”
Where supported by the selected configuration, external fixation may form part of specialist treatment for complex foot deformity.
Terms such as talipes equinovarus, equinovalgus deformity, equinus of the hindfoot, and equinocavovarus describe different alignment features. They should not be treated as interchangeable diagnoses.
Foot assembly components and adjustment mechanisms must match the planned correction. The product title alone does not establish suitability for every foot deformity.
The Ilizarov external fixator technique depends on the procedure, frame configuration, and individual treatment plan.
For evaluation and use, request the applicable Ilizarov manual or system-specific documentation covering:
General Ilizarov frame principles do not replace product-specific training. Patients and caregivers should only make adjustments according to instructions supplied by their treating team.
A complete purchasing evaluation should connect the requested assembly to clear documentation.
| Information to request | Purchasing purpose |
|---|---|
| Component codes and dimensions | Identify the requested assembly |
| Material specifications | Support the stated construction |
| Instructions for use | Establish intended applications and limitations |
| Compatibility information | Identify matching components and instruments |
| Processing instructions | Define requirements for reusable items |
| Labeling and traceability | Support purchasing and inventory records |
| Applicable certificates | Confirm coverage of the selected products |
| Itemized quotation | Establish exactly what is included |
For other fixation products, explore the Trauma Implants range.
An Ilizarov frame price depends on the specified components and quantities. Comparing quotations is easier when each offer covers the same assembly.
Provide the required ring sizes, connecting rods, fixation attachments, adjustment components, instruments, and replacement parts.
Hospitals and distributors in Africa, Latin America, and Russia can include destination-specific documentation and labeling requirements when requesting a quotation.
Contact our team for Ilizarov Type External Fixator System configurations, component references, and purchasing enquiries.
Include the required assembly, quantities, destination, and documentation needs.
Email: info@stahlmannpro.ae
Phone / WhatsApp: +971 50 975 0822
It is a circular external fixation frame attached to bone through wires or other compatible fixation elements. Its assembly is selected for the planned treatment.
Yes. An Ilizarov frame is a type of circular external fixation device.
A practical grouping is monolateral, circular, and hybrid constructs. Classification varies; many clinical resources describe monolateral and circular systems as the two main categories, with hybrid configurations combining features.
A hybrid construct combines fixation arrangements, such as ring elements with a unilateral rod-and-pin assembly. Confirm the exact components and supported configuration.
It is an external frame positioned around the lower leg and connected to the tibia through fixation elements. Its configuration depends on the fracture or reconstruction requirements.
Monolateral, circular, or hybrid fixation may be considered in different circumstances. The treating surgeon selects the appropriate method and construct.
It requires individual assessment of benefits and risks. Pin-site infection, stiffness, nerve or vessel injury, and healing problems are potential concerns. No frame makes a procedure risk-free.
There is no single complication that is most serious in every case. Deep infection and neurovascular injury can be serious, while pin-site infection is a common treatment concern.
Yes, in selected patients under specialist care. The appropriate method, amount, and timing depend on individual assessment.
A numerical target cannot be declared safe for everyone. Bone condition, soft tissues, nerves, joints, and overall health must be assessed by a limb reconstruction specialist.
Equinovarus combines a downward-pointing foot position with inward alignment. Equinovalgus combines the downward-pointing position with outward valgus alignment. Both require assessment of the actual deformity.
It combines equinus, a high arch or cavus component, and varus alignment. The name describes several deformity components rather than one uniform condition.
The total depends on the procedure, hospital, location, treatment duration, and follow-up. The external fixator quotation is only one part of the overall cost.
Weight-bearing permission depends on the construct and treatment plan. Follow the treating team’s instructions.
Confirm the quotation. An assembled frame, a component set, and an instrument set may have different contents.
