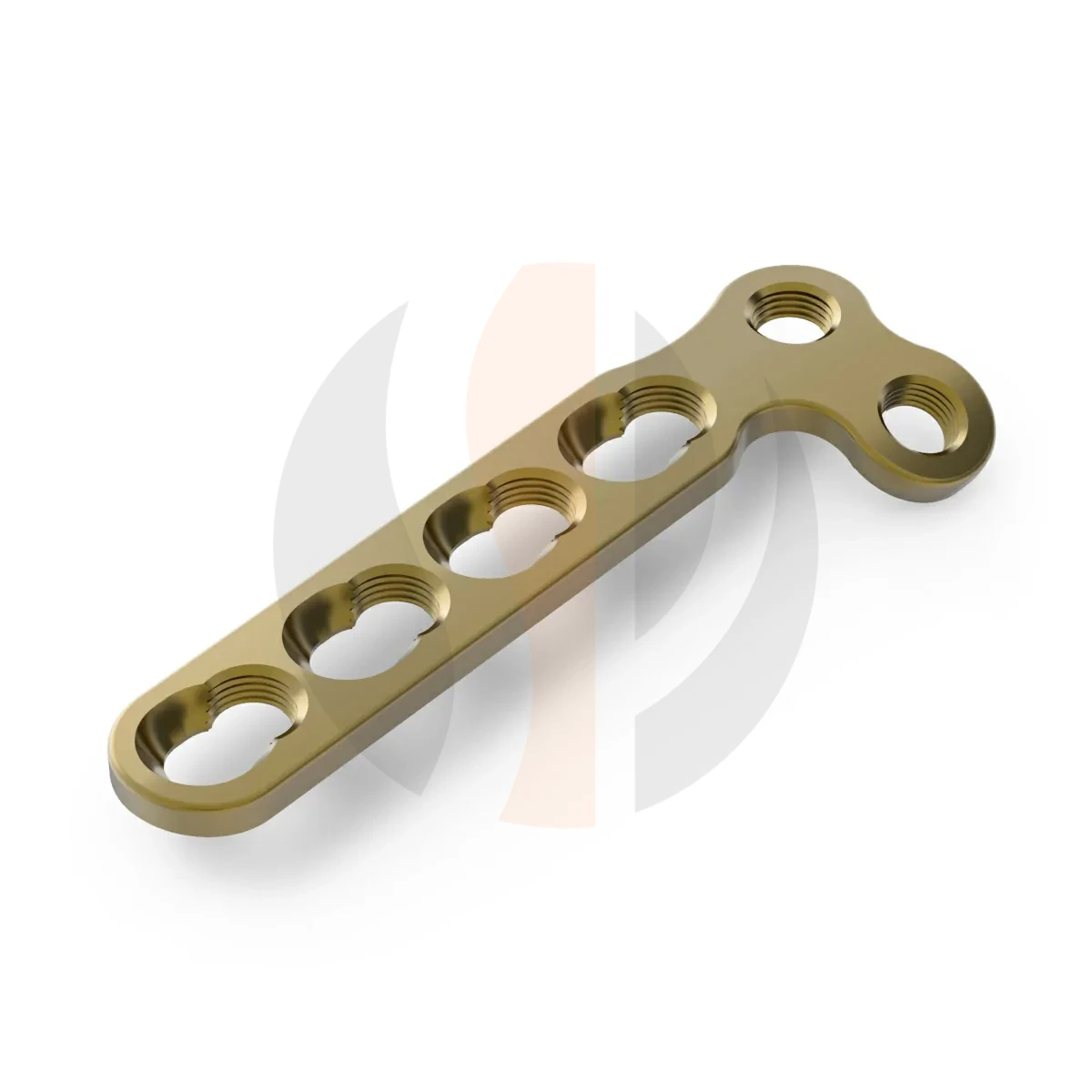

2.7mm L Locking Plate in titanium. Available with left and right versions with 3 or 4 shaft holes, 2 head holes and lengths of 32.1mm or 39.6mm. Supports 2.7mm cortical and locking screws. View the catalogue references below.
2.7mm L Locking Plate is part of the StahlmannPro 2.7mm Foot System catalogue. The titanium plate is listed with left and right versions with 3 or 4 shaft holes, 2 head holes and lengths of 32.1mm or 39.6mm. It features compression and locking holes. The catalogue specifies support for 2.7mm cortical and locking screws. Use the size table to identify the exact configuration for your enquiry.
This L plate uses the 4-508 reference series. Specify the left or right option and shaft-hole count for each order line.
When reviewing the 2.7mm L Locking Plate, compare the listed hole arrangement and dimensions together. A shared system diameter does not establish compatibility with components from another system. Confirm the exact plate, screw and instrument combination in the current device documentation.
The catalogue lists proximal and distal extra-articular, partial-articular and complete-articular fractures of the metatarsals. These statements describe the supplied product literature. Suitability for an individual patient must be assessed by the treating surgeon using the current device instructions.
| Type | Holes | Length (mm) | Titanium |
|---|---|---|---|
| Left | Shaft 3, Head 2 | 32.1 | 4-508-03L-Ti |
| Right | Shaft 3, Head 2 | 32.1 | 4-508-03R-Ti |
| Left | Shaft 4, Head 2 | 39.6 | 4-508-04L-Ti |
| Right | Shaft 4, Head 2 | 39.6 | 4-508-04R-Ti |
To request the 2.7mm L Locking Plate, provide the full catalogue reference, required quantity and delivery destination. Include the selected configuration and any left or right designation so the quotation can be checked against your specification.
Where your purchasing process requires material grade, packaging condition, sterility information or supporting documentation, request confirmation for the exact reference. These details are not established by the catalogue image. Include any instrument requirements as separate enquiry items.
The catalogue lists left and right versions with 3 or 4 shaft holes, 2 head holes and lengths of 32.1mm or 39.6mm. Each configuration and its titanium reference appear in the product table.
The supplied page specifies 2.7mm cortical and locking screws. Confirm the complete component combination and required instruments in the applicable device documentation.
The catalogue lists proximal and distal extra-articular, partial-articular and complete-articular fractures of the metatarsals. The treating surgeon must confirm the intended use and suitability for each case.
No. This 4-508 series measures 32.1 or 39.6mm. The separate oblique 4-506 series measures 34.6 or 42.1mm. Specify the complete name and reference.
Send the full product name, catalogue reference, configuration and side where applicable, quantity per item and delivery destination. Include any required packaging or product documentation.
