• Improved cruciform-style drive recess for greater screw/blade retention and
torque transmission for reduce cam-out
• Screws made from titanium alloy
• Screw sizes of 2.0, 2.4 and 2.7 for emergency
• Short screws with fine pitch for enhanced resistance to stripping and increased
pull-out performance
• All screw diameters work with all plates
• Off-axis screw insertion up to 15° (screw-to-blade axes)
• Screw angulation at least 10° depending on plate size
• Improved cruciform-style drive recess for greater screw/blade retention and
torque transmission for reduce cam-out
• Screws made from titanium alloy
• Screw sizes of 2.0, 2.4 and 2.7 for emergency
• Short screws with fine pitch for enhanced resistance to stripping and increased
pull-out performance
• All screw diameters work with all plates
• Off-axis screw insertion up to 15° (screw-to-blade axes)
• Screw angulation at least 10° depending on plate size
| Code | Head Ø | Thread Ø | Length | Color |
|---|---|---|---|---|

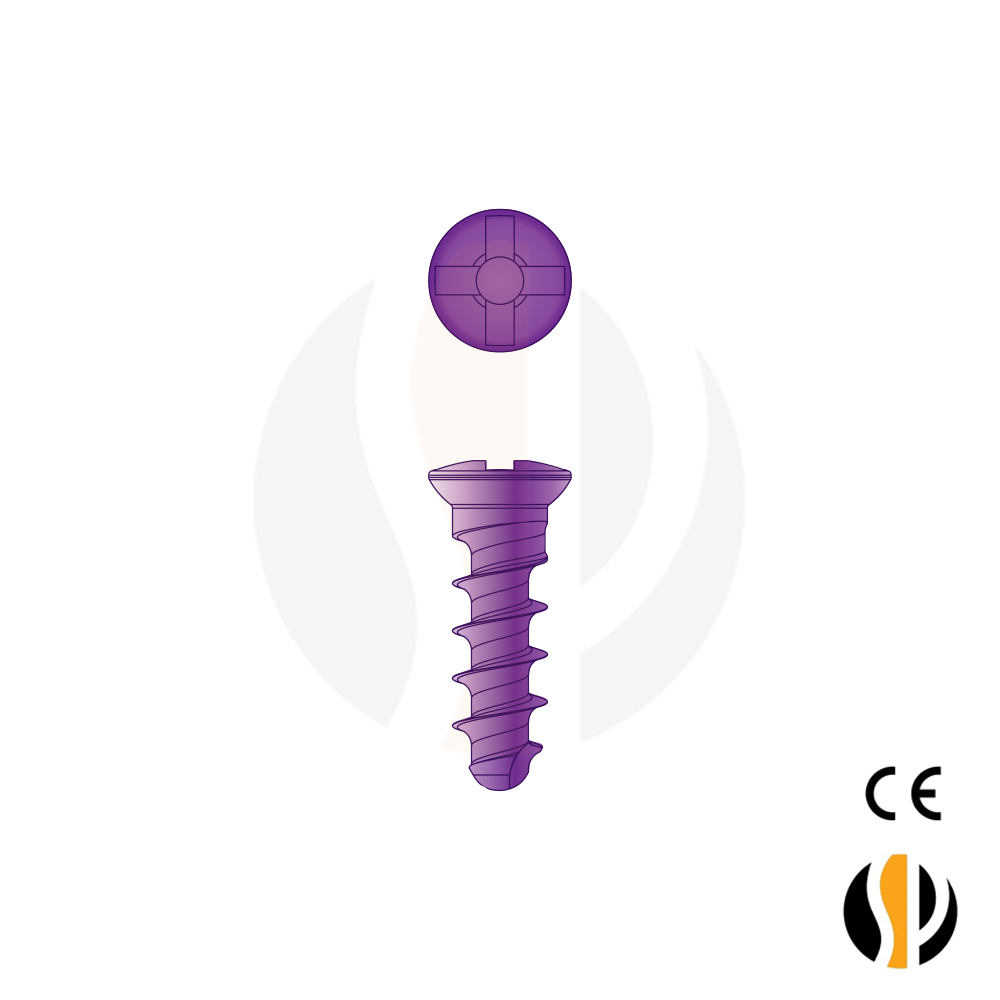

| M19-04 M23-16 M19-08 M23-12 M19-12 M23-08 M19-16 M23-05 M19-20 M19-18 M23-06 M19-14 M23-10 M19-10 M23-14 M19-06` |
Ø 3.0 Ø 3.0 Ø 3.0 Ø 3.0 Ø 3.0 Ø 3.0 Ø 3.0 Ø 3.0 Ø 3.0 Ø 3.0 Ø 3.0 Ø 3.0 Ø 3.0 Ø 3.0 Ø 3.0 Ø 3.0 |
Ø 1.95 Ø 2.3 Ø 1.95 Ø 2.3 Ø 1.95 Ø 2.3 Ø 1.95 Ø 2.3 Ø 1.95 Ø 1.95 Ø 2.3 Ø 1.95 Ø 2.3 Ø 1.95 Ø 2.3 Ø 1.9 |
04 mm 16 mm 08 mm 12 mm 12 mm 08 mm 16 mm 05 mm 20 mm 18 mm 06 mm 14 mm 10 mm 10 mm 14 mm 06 mm |
Pink Pink Pink Pink Pink Pink Pink Pink Pink Green Green Green Green Green Green Green |
