• Improved cruciform-style drive recess for greater screw/blade retention and
torque transmission for reduce cam-out
• Screws made from titanium alloy
• Screw sizes of 2.0, 2.4 and 2.7 for emergency
• Short screws with fine pitch for enhanced resistance to stripping and increased
pull-out performance
• All screw diameters work with all plates
• Off-axis screw insertion up to 15° (screw-to-blade axes)
• Screw angulation at least 10° depending on plate size
• Improved cruciform-style drive recess for greater screw/blade retention and
torque transmission for reduce cam-out
• Screws made from titanium alloy
• Screw sizes of 2.0, 2.4 and 2.7 for emergency
• Short screws with fine pitch for enhanced resistance to stripping and increased
pull-out performance
• All screw diameters work with all plates
• Off-axis screw insertion up to 15° (screw-to-blade axes)
• Screw angulation at least 10° depending on plate size
| Code | Head Ø | Thread Ø | Length | Color |
| M19-04 M23-16 M19-08 M23-12 M19-12 M23-08 M19-16 M23-05 M19-20 M19-18 M23-06 M19-14 M23-10 M19-10 M23-14 M19-06 |
Ø 3.0 Ø 3.0 Ø 3.0 Ø 3.0 Ø 3.0 Ø 3.0 Ø 3.0 Ø 3.0 Ø 3.0 Ø 3.0 Ø 3.0 Ø 3.0 Ø 3.0 Ø 3.0 Ø 3.0 Ø 3.0 |
Ø 1.95 Ø 2.3 Ø 1.95 Ø 2.3 Ø 1.95 Ø 2.3 Ø 1.95 Ø 2.3 Ø 1.95 Ø 1.95 Ø 2.3 Ø 1.95 Ø 2.3 Ø 1.95 Ø 2.3 Ø 1.95 |
04 mm 16 mm 08 mm 12 mm 12 mm 08 mm 16 mm 05 mm 20 mm 18 mm 06 mm 14 mm 10 mm 10 mm 14 mm 06 mm |
Blue Blue Blue Blue Blue Blue Blue Blue blue Green Green Green Green Green Green Green |

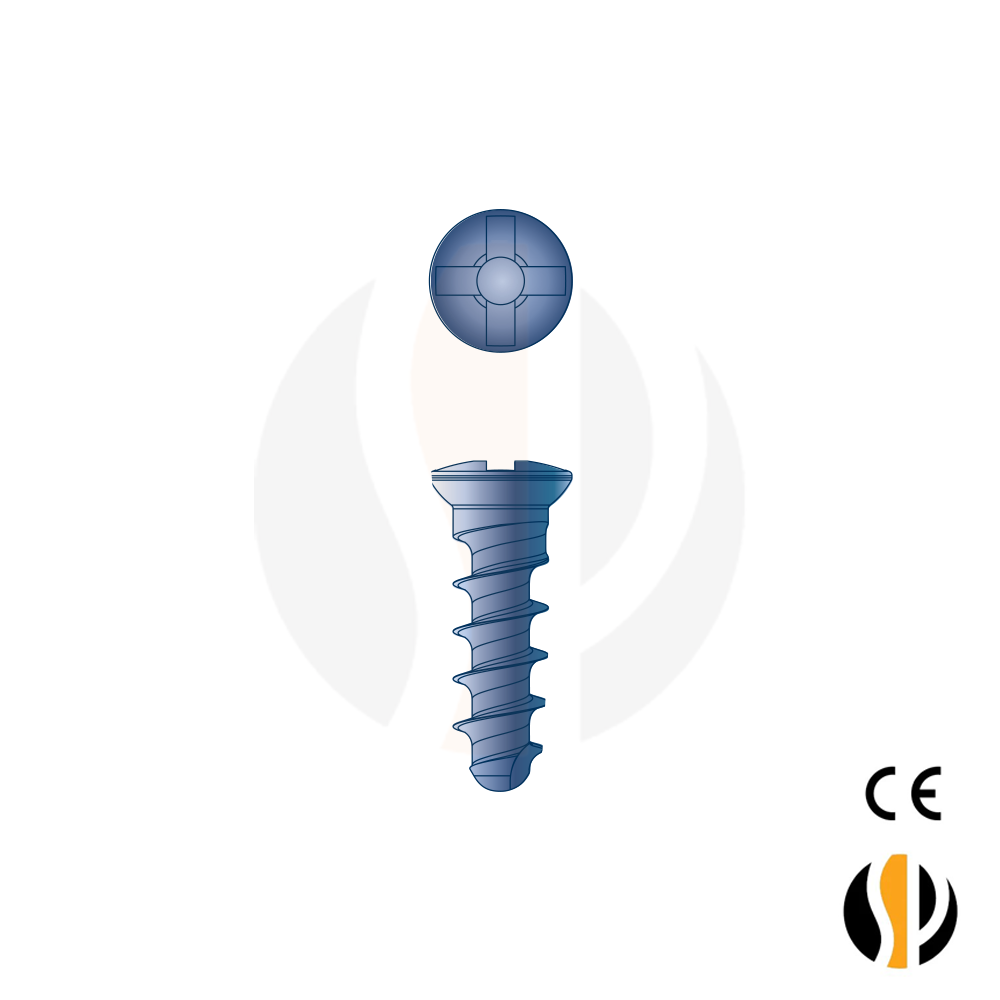

2.0 Locking Screws are orthopedic fixation components designed to work with compatible locking plates. They help secure plates during fracture fixation procedures.
The screws are made from titanium alloy, which is commonly used for orthopedic implant applications because of its suitable mechanical and biocompatibility characteristics.
The product range includes screw diameters of 2.0 mm, 2.4 mm, and 2.7 mm, with different lengths available depending on the required application.
Yes. The product specifications indicate off axis screw insertion of up to 15 degrees and screw angulation of at least 10 degrees depending on the plate size.
The screws feature a cruciform style drive recess designed to improve screw and blade retention and torque transmission. Their fine pitch is also designed to improve resistance to stripping and pull out performance.
